Saekerhetsbroms/bromsback for BMW 7 Series E38 740i (1998)

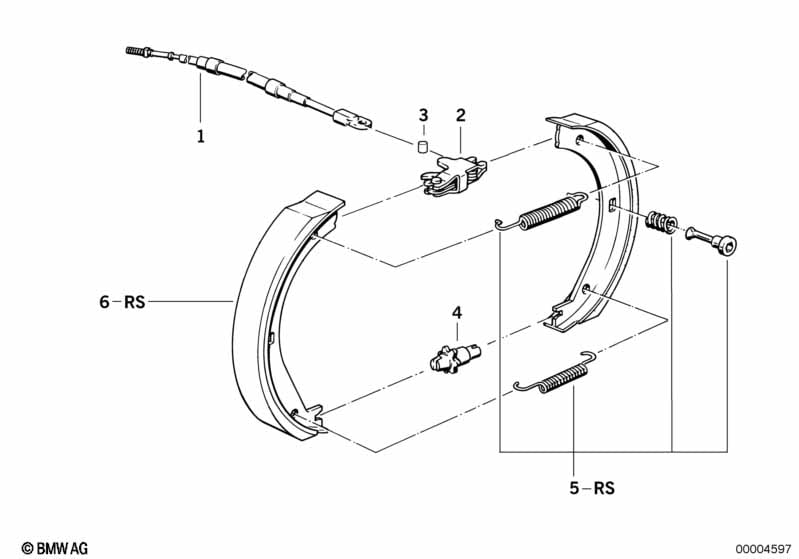

This Saekerhetsbroms/bromsback technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Vid bromsbacksbyte är följande delar absolut nödvändiga: Reparationssats fjädrar Expanderlås Ställskruv |
|||||||||
| 01 | Bowdenkabel saekerhetsbromspedal vaenst. | 1 | 35511161473 | $43.62 | Shop at ECS Tuning | |||||
| 01 | Bowdenkabel saekerhetsbromspedal hoeger | 1 | 35511161474 | $32.88 | Shop at ECS Tuning | |||||
| 02 | Expanderlaas | 2 | 34416868624 | Shop at ECS Tuning | ||||||
| endasti i kombination med | ||||||||||
| -- | Bultar | 2 | 34411100640 | $1.67 | Shop at ECS Tuning | |||||
| 03 | Bultar | 2 | 34411100640 | $1.67 | Shop at ECS Tuning | |||||
| 04 | Justerskruv | 2 | 34416851437 | Shop at ECS Tuning | ||||||
| 05 | Reparationssats foer fjaeder | 1 | 34410304724 | $17.56 | Shop at ECS Tuning | |||||
| 06 | Reparationssats bromsback asbestfri | 1 | 34416761294 | $92.33 | Shop at ECS Tuning | |||||
| För fordon med Landutförande storbritannien |
L812A=Ja |
|||||||||
| 06 | Reparationssats bromsback asbestfri | 1 | 34416761294 | $92.33 | Shop at ECS Tuning | |||||
