Bakhjulsbroms for BMW R45-R65LS..78-85 R45

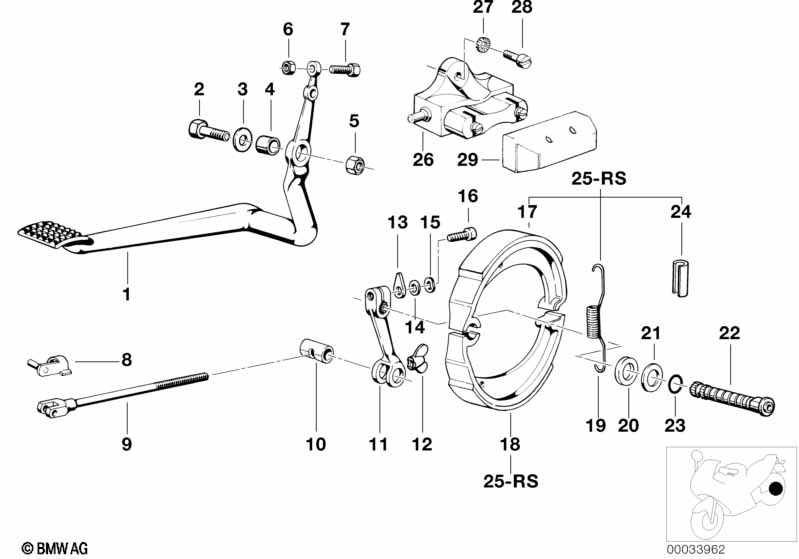

This Bakhjulsbroms technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bromsarm | 1 | 35211238284 | +stomme | Shop at ECS Tuning | |||||
| 02 | Sexkantskruv | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 03 | Underlagsplaata | 8,4X18X2MM | 2 | 07149180923 | Shop at ECS Tuning | |||||
| 04 | Lagerbussning | 1 | 35211236586 | $12.02 | Shop at ECS Tuning | |||||
| 05 | Sexkantmutter självlasning | M8-8-ZNS3 | 1 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Sexkantmutter | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Sexkantskruv | M6X20-8.8ZNS3 | 1 | 35211231067 | $1.54 | Shop at ECS Tuning | ||||
| 08 | Bultar | D=6X24 | 1 | 07129934955 | $4.06 | Shop at ECS Tuning | ||||
| 09 | Dragstaang | 1 | 35211450743 | $41.44 | Avslutad | Shop at ECS Tuning | ||||
| 10 | Bultar | 1 | 34214044141 | $15.85 | Shop at ECS Tuning | |||||
| 11 | Bromsarm | 1 | 09/1980 | 35211230308 | $35.89 | Avslutad, +stomme | Shop at ECS Tuning | |||
| 11 | Bromsarm | 1 | 09/1980 | 35211239078 | $116.64 | Shop at ECS Tuning | ||||
| 12 | Vingmutter | 1 | 35211232137 | $5.90 | Shop at ECS Tuning | |||||
| 13 | Haengsle | 1 | 35212301636 | $3.38 | Avslutad | Shop at ECS Tuning | ||||
| 14 | Underlagsplaata | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 15 | Fjäderbricka svart | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Underlagsplaata | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 15 | Fjäderbricka | B6-ZNS3 | 1 | 07119904496 | $1.78 | Avslutad | Shop at ECS Tuning | |||
| 17 | Bromsback asbestfri upptill bak | 1 | 09/1980 | 34212311080 | $86.97 | +stomme | Shop at ECS Tuning | |||
| 18 | Bromsback asbestfri nedtill bak | 1 | 09/1980 | 34212311081 | $86.97 | +stomme | Shop at ECS Tuning | |||
| 19 | Dragfjaeder | 2 | 34211457091 | $4.28 | Shop at ECS Tuning | |||||
| 20 | Packning | 14X22X1.50 | 1 | 35211230360 | $0.83 | Shop at ECS Tuning | ||||
| 21 | Underlagsplaata | 1 | 34213060107 | $0.84 | Avslutad | Shop at ECS Tuning | ||||
| 22 | Bromskam | 1 | 09/1980 | 35211230261 | $118.11 | Avslutad, +stomme | Shop at ECS Tuning | |||
| 22 | Bromskam | 1 | 09/1980 | 35211454836 | $118.11 | Avslutad, +stomme | Shop at ECS Tuning | |||
| 23 | O-ring | 10X2 | 2 | 09/1980 | 07119906328 | $0.13 | Shop at ECS Tuning | |||
| 24 | Daempare | 1 | 34211457572 | $10.08 | Shop at ECS Tuning | |||||
| 25 | Reparationssats bromsback asbestfri | 25MM 2 BACKEN | 1 | 09/1980 | 34212310523 | $100.54 | +stomme | Shop at ECS Tuning | ||
| 26 | Bromsljuskontakt | 1 | 61311353684 | $58.32 | +stomme | Shop at ECS Tuning | ||||
| 27 | Fjäderbricka | B4 | 2 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 28 | Linsskruv | M4X12 | 2 | 07119900692 | $1.80 | Shop at ECS Tuning | ||||
| 28 | Skruv KFH | ST3,9X16 | 2 | 07119906734 | $0.11 | Shop at ECS Tuning | ||||
| 29 | Kåpa | 1 | 61311351249 | $8.61 | Shop at ECS Tuning |
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
- Avslutad = delen tillverkas inte längre.
