Kompl. sats, dubbelskivbroms for BMW R45-R65LS..78-85 R45

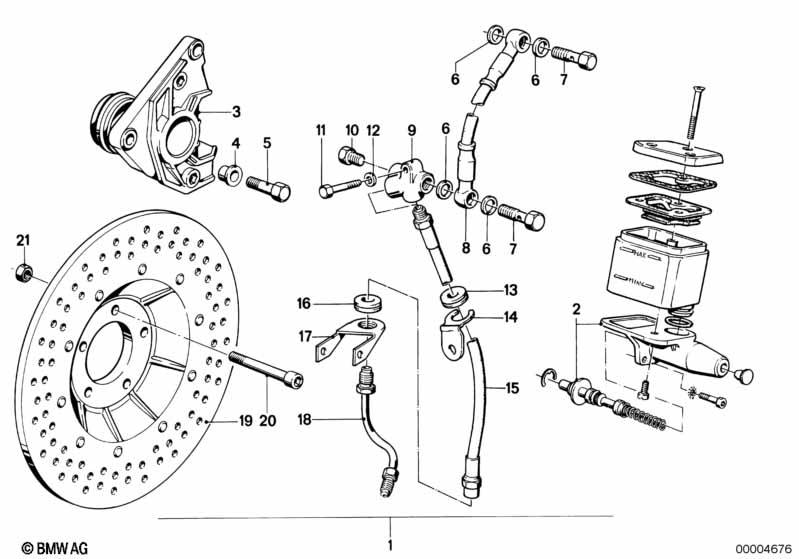

This Kompl. sats, dubbelskivbroms technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kompl. sats, dubbelskivbroms | ATE | 1 | 09/1981 | 34119056140 | Avslutad | Shop at ECS Tuning | |||
| 01 | Kompl. sats, dubbelskivbroms | BREMBO | 1 | 09/1981 | 34119056142 | Avslutad | Shop at ECS Tuning | |||
| 02 | Cylinder med kolv | D=15MM | 1 | 09/1981 | 32722302370 | $253.68 | +stomme | Shop at ECS Tuning | ||
| 03 | Bromshus hoeger | ATE | 1 | 09/1981 | 34111237258 | $487.37 | Avslutad, +stomme | Shop at ECS Tuning | ||
| 03 | Bromshus hoeger | BREMBO | 1 | 09/1981 | 34111238070 | $454.80 | Avslutad, +stomme | Shop at ECS Tuning | ||
| 04 | Hylsa | 1,2 | 2 | 09/1981 | 34111238079 | $8.25 | Shop at ECS Tuning | |||
| 04 | Hylsa | 2,35 | 2 | 09/1981 | 34111238080 | $8.25 | Shop at ECS Tuning | |||
| 04 | Hylsa | 3,5 | 2 | 09/1981 | 34111238081 | $8.25 | Shop at ECS Tuning | |||
| 04 | Hylsa | 1,7 | 2 | 09/1981 | 34112301735 | $4.60 | Shop at ECS Tuning | |||
| 04 | Hylsa | 2,9 | 2 | 09/1981 | 34112301736 | $4.60 | Avslutad | Shop at ECS Tuning | ||
| 05 | Skruv ctt | M10X30-8.8-ZNS | 2 | 09/1981 | 07119901049 | $1.30 | Shop at ECS Tuning | |||
| 06 | Packning | A10X13,5-CU | 4 | 09/1981 | 07119963072 | $0.11 | Shop at ECS Tuning | |||
| 07 | Banjobult | 2 | 09/1981 | 34321242205 | $4.47 | Shop at ECS Tuning | ||||
| 08 | Bromsslang | 260 LG. | 1 | 09/1981 | 34321242883 | $47.84 | Avslutad, +stomme | Shop at ECS Tuning | ||
| 09 | Foerdelarstycke | 1 | 09/1981 | 34321239831 | $42.72 | Shop at ECS Tuning | ||||
| 09 | Foerdelarstycke | 1 | 09/1981 | 34321239830 | Avslutad | Shop at ECS Tuning | ||||
| 10 | Tätn.skruvar | 1 | 09/1981 | 34321236790 | $3.36 | Avslutad | Shop at ECS Tuning | |||
| 11 | Sexkantskruv | M6X25 | 1 | 09/1981 | 07119913589 | $0.62 | Shop at ECS Tuning | |||
| 12 | Underlagsplaata | A6,4-ZNNIV SI | 1 | 09/1981 | 07119904202 | Shop at ECS Tuning | ||||
| 13 | Bussning | 1 | 09/1981 | 34321237259 | $1.82 | Shop at ECS Tuning | ||||
| 14 | Slangfaeste | 1 | 09/1981 | 34321237255 | $1.39 | Shop at ECS Tuning | ||||
| 15 | Bromsslang | 470 LG. | 2 | 09/1981 | 34321239826 | $91.16 | Avslutad | Shop at ECS Tuning | ||
| 15 | Bromsslang | 2 | 09/1981 | 34321237261 | Shop at ECS Tuning | |||||
| 16 | Bussning | 1 | 09/1981 | 34321236462 | $2.80 | Shop at ECS Tuning | ||||
| 17 | Slangfaeste | 1 | 09/1981 | 34321237256 | $18.26 | Shop at ECS Tuning | ||||
| 18 | Bromsledningar hoeger | 1 | 09/1981 | 34321238258 | $8.34 | Shop at ECS Tuning | ||||
| 19 | Bromsskiva | 1 | 09/1981 | 34111236005 | $435.50 | +stomme | Shop at ECS Tuning | |||
| 20 | Skruv ctt | M8X70-8.8-ZNS | 5 | 09/1981 | 07119901038 | $2.64 | Avslutad | Shop at ECS Tuning | ||
| 21 | Sexkantmutter självlasning | M8-8-ZNS3 | 5 | 09/1981 | 07129904002 | $0.18 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
