Bromsledningar fram DSC for BMW 7 Series E38 740i (1998)

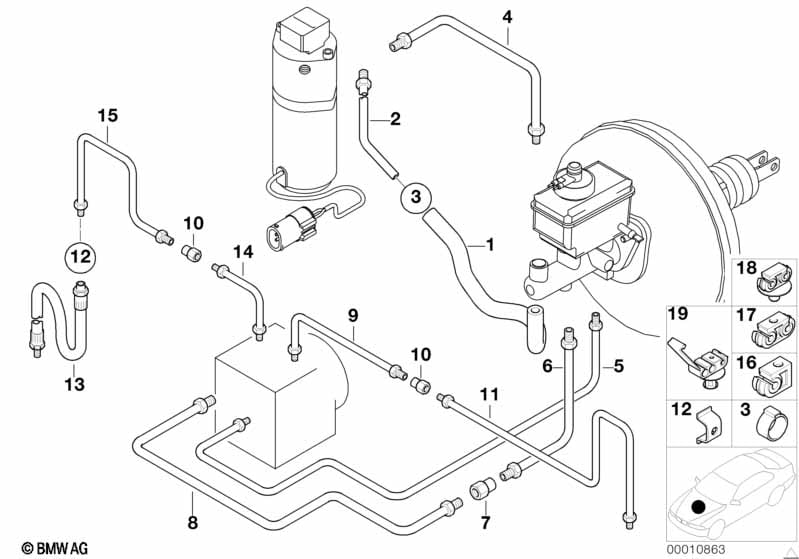

This Bromsledningar fram DSC technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Formslang | DSC | 1 | 09/1998 | 34501164793 | Avslutad | Shop at ECS Tuning | |||
| 03 | Slangklaemma | L12-15 | 1 | 09/1998 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 03 | Slangklaemma | D=11,5MM | 1 | 09/1998 | 16131178918 | $0.77 | Shop at ECS Tuning | |||
| 04 | Roerledning | M10/M12-414MM | 1 | 09/1998 | 34506755242 | Avslutad | Shop at ECS Tuning | |||
| 05 | Roerledning med gummihoelje | M10/M12 | 1 | 09/1998 | 34321164906 | Avslutad | Shop at ECS Tuning | |||
| 06 | Roerledning | M12/M12 | 1 | 09/1998 | 34321164789 | Avslutad | Shop at ECS Tuning | |||
| 07 | Mellanstycke | M12X1 | 1 | 09/1998 | 34326757285 | $4.08 | Shop at ECS Tuning | |||
| 08 | Roerledning med gummihoelje | M12/M12 | 1 | 09/1998 | 34321164790 | Avslutad | Shop at ECS Tuning | |||
| 08 | Roerledning | M12/M12 | 1 | 09/1998 | 34321165606 | $25.60 | Avslutad | Shop at ECS Tuning | ||
| 09 | Roerledning | M10/M12-1759MM | 1 | 09/1998 | 34321164780 | $14.13 | Shop at ECS Tuning | |||
| 10 | Mellanstycke | M10X1 | 2 | 09/1998 | 34326757282 | $4.08 | Shop at ECS Tuning | |||
| 11 | Roerledning | M10/M10-360MM | 1 | 09/1998 | 34326755565 | $7.60 | Shop at ECS Tuning | |||
| 12 | Faestfjaeder | 2 | 09/1998 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 13 | Bromsslang fram | 2 | 09/1998 | 34301163155 | $39.55 | Shop at ECS Tuning | ||||
| 14 | Roerledning | M10/M12-396MM | 1 | 09/1998 | 34321165108 | $7.48 | Avslutad | Shop at ECS Tuning | ||
| 15 | Roerledning | M10/M10-380MM | 1 | 09/1998 | 34326755567 | $7.60 | Shop at ECS Tuning | |||
| UTAN NIVAAREGULERING | ||||||||||
| 16 | Hållare bromsledningar | 1 | 09/1998 | 34326855500 | Shop at ECS Tuning | |||||
| För fordon med Nivaareglering |
=Ja |
|||||||||
| 17 | Hållare bromsledningar | 2 | 09/1998 | 34326880898 | Shop at ECS Tuning | |||||
| 18 | Hållare bromsledningar | 1 | 09/1998 | 34301161568 | $1.48 | Shop at ECS Tuning | ||||
| 19 | Hållare bromsledningar | 1 | 09/1998 | 34321161701 | $2.30 | Shop at ECS Tuning | ||||
| 20 | Hållare bromsledningar | 3 | 09/1998 | 34321162878 | $1.95 | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
