Bakhjulsbroms for BMW 2500-3.3Li 3.3Li

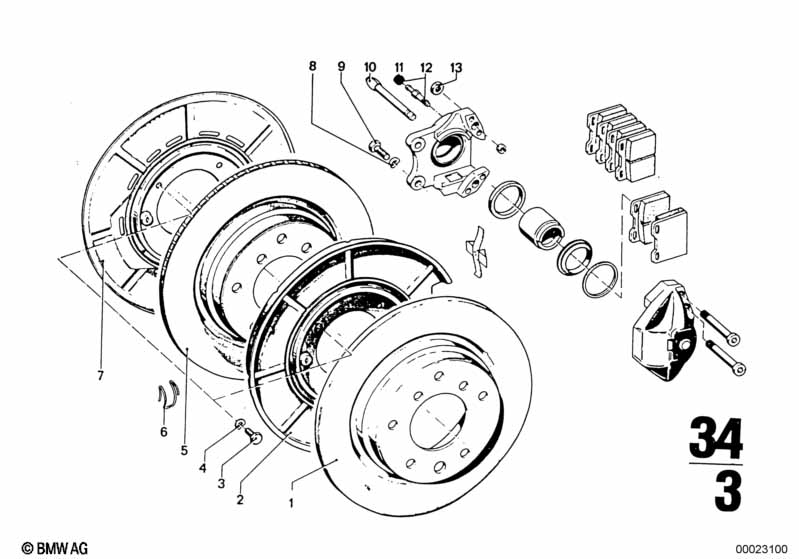

This Bakhjulsbroms technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Sexkantskruv | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Fjäderbricka | B6 | 4 | 07119932072 | $0.09 | Avslutad | Shop at ECS Tuning | |||
| 05 | Bromsskiva | 272X19 | 2 | 05/1971 | 02/1977 | 34216890341 | Shop at ECS Tuning | |||
| 06 | Klammer | 4,5G | X | 05/1971 | 02/1977 | 34211113013 | Avslutad | Shop at ECS Tuning | ||
| 06 | Klammer | 9,0G | X | 05/1971 | 02/1977 | 34211113014 | Avslutad | Shop at ECS Tuning | ||
| 07 | Skyddsblek vaenster | 1 | 05/1971 | 02/1977 | 34211104548 | $32.03 | Avslutad | Shop at ECS Tuning | ||
| 07 | Skyddsblek hoeger | 1 | 05/1971 | 02/1977 | 34211150341 | $32.03 | Avslutad | Shop at ECS Tuning | ||
| 08 | Fjäderbricka | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 09 | Sexkantskruv | M10X24 10.9 | 4 | 34211104997 | $1.73 | Shop at ECS Tuning | ||||
| 10 | Stift | 4 | 05/1971 | 02/1977 | 34211103325 | Avslutad | Shop at ECS Tuning | |||
| 11 | Dammhuv | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 12 | Luftningsventil | 8 | 34211103211 | $5.59 | Shop at ECS Tuning | |||||
| 13 | Mutter | 8 | 34211108776 | $3.39 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
