Gasreglage/staanggaang for BMW 5 Series E12 528 (1977)

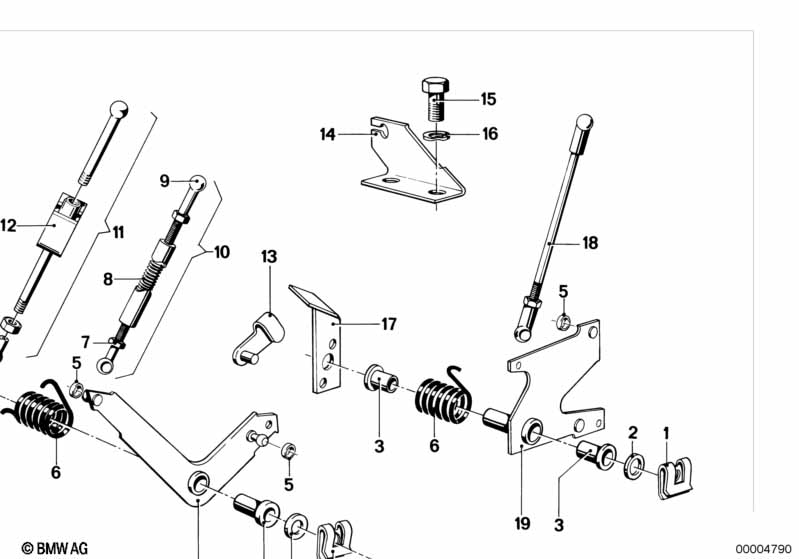

This Gasreglage/staanggaang technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Klammer | 1 | 35411104248 | $0.82 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Underlagsplaata | 10-200HV-ZNNIV | 1 | 07119907114 | Shop at ECS Tuning | |||||
| 03 | Lagerbussning | D=10MM | 2 | 35411100674 | $0.80 | Shop at ECS Tuning | ||||
| 05 | Plastbussning | 3 | 23417650149 | $1.20 | Shop at ECS Tuning | |||||
| 06 | Fjäder | 1 | 35411119306 | $8.98 | Shop at ECS Tuning | |||||
| 07 | Sexkantmutter | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 09 | Kugelpan | 2 | 13211260219 | $6.54 | Avslutad | Shop at ECS Tuning | ||||
| 17 | Anslag | 1 | 35411108552 | Avslutad | Shop at ECS Tuning | |||||
| 18 | Dragstaang | 1 | 08/1976 | 35411105044 | $8.39 | Avslutad | Shop at ECS Tuning | |||
| 19 | Mellanarm | 1 | 35411108549 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
