BMW LM-fälg Trapetseker 134 for BMW 5 Series E60 525i (2007)

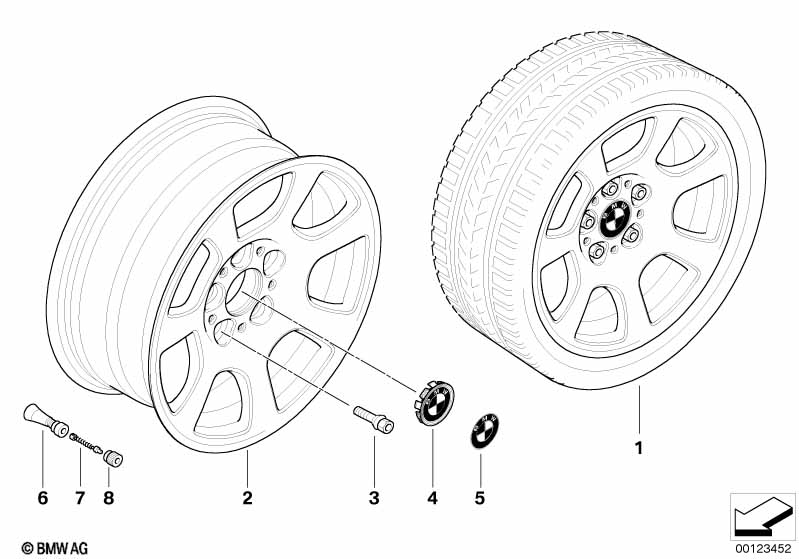

This BMW LM-fälg Trapetseker 134 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med RSC = Runflat-System-Component |
=Nej |
|||||||||
| 02 | Lättmetallskivhjul | 7JX16 ET:20 | 4 | 36116762000 | $429.95 | Shop at ECS Tuning | ||||
| 03 | Hjulskruv svart | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Navkapselskydd med kromrand | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Präglat BMW-emblem /lackerad | 4 | 36136767547 | $5.02 | Avslutad | Shop at ECS Tuning | ||||
| 06 | Gummiventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Ventilinsats | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Ventilkåpa | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i BMW LM-fälg Trapetseker 134?
- This technical diagram illustrates the BMW LM-fälg Trapetseker 134 within the Hjul group for the 5 Series E60 525i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Lättmetallskivhjul (Part #36116762000).
- Which models use the hardware listed in this BMW LM-fälg Trapetseker 134?
- The hardware and components featured in the BMW LM-fälg Trapetseker 134 are specific to the 5 Series E60 525i produced during 2007. These technical specifications ensure that parts like the Lättmetallskivhjul (36116762000) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LM-fälg Trapetseker 134 assembly?
- Each item in the BMW LM-fälg Trapetseker 134 corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the Lättmetallskivhjul by locating its position on the schematic, which then links to the official BMW part number 36116762000 for the Hjul section.
