Faelg staal styl.12 for BMW 3 Series E90 LCI 318i (2011)

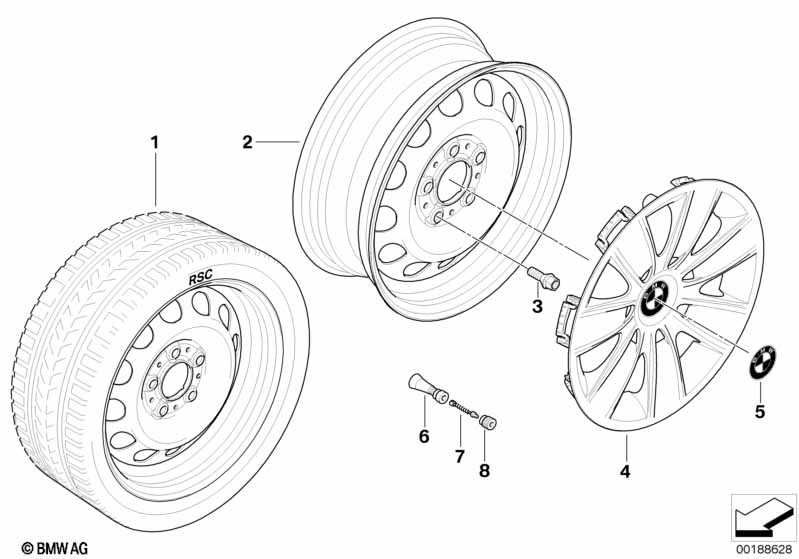

This Faelg staal styl.12 technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med Sportbromssystem |
SZP1A=Nej |
|||||||||
| 02 | Stålfälg svart | 7JX16 ET:31 | 4 | 09/2007 | 36116777783 | $110.95 | +stomme | Shop at ECS Tuning | ||
| 03 | Hjulskruv svart | M12X1,5 | 4 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Navkapsel | 16" | 4 | 09/2007 | 36136777786 | $37.82 | Shop at ECS Tuning | |||
| passar endasti till | ||||||||||
| -- | Stålfälg svart | 7JX16 ET:31 | X | 09/2007 | 36116777783 | $110.95 | +stomme | Shop at ECS Tuning | ||
| 05 | Präglat BMW-emblem med häftfolie | D=64,5MM | 4 | 36136767550 | $5.33 | Shop at ECS Tuning | ||||
| 06 | Gummiventil | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Ventilinsats | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Ventilkåpa | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
