BMW kompoundhjul radialeker 198 for BMW 3 Series E90 LCI 318i (2011)

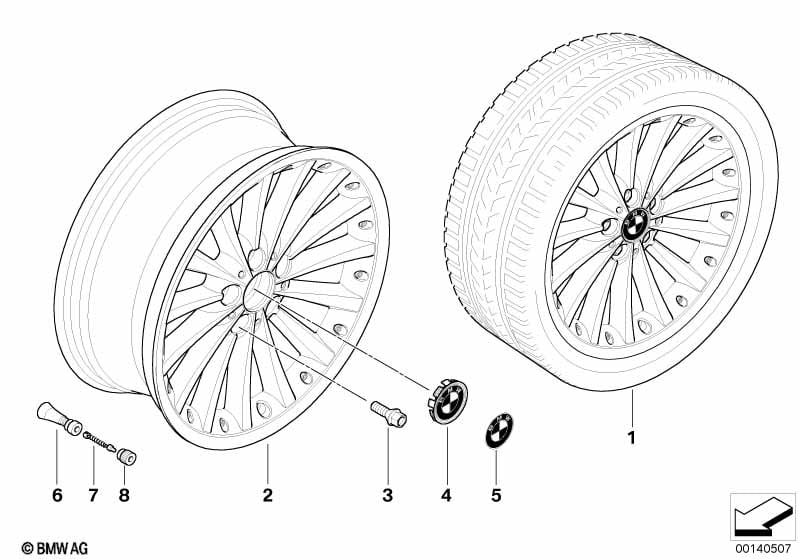

This BMW kompoundhjul radialeker 198 technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med 19" LM-fälg splitfälg radialeker 198 |
SZLDA=Ja |
||||||||
| 02 | Laettmetallskivhjul tvaadelad | 8JX19 ET:37 | 2 | 36116769570 | $883.48 | Avslutad | Shop at ECS Tuning | |||
| 02 | Laettmetallskivhjul tvaadelad | 9JX19 ET:39 | 2 | 36116769571 | $927.32 | Avslutad, +stomme | Shop at ECS Tuning | |||
| 03 | Hjulskruv svart | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Navkapselskydd med kromrand | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Präglat BMW-emblem /lackerad | 4 | 36136767547 | $5.02 | Avslutad | Shop at ECS Tuning | ||||
| 06 | Gummiventil | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Ventilinsats | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Ventilkåpa | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
