Ringtryckskontrollampa (RDC) - styrdon for BMW 5 Series E60 530xi (2007)

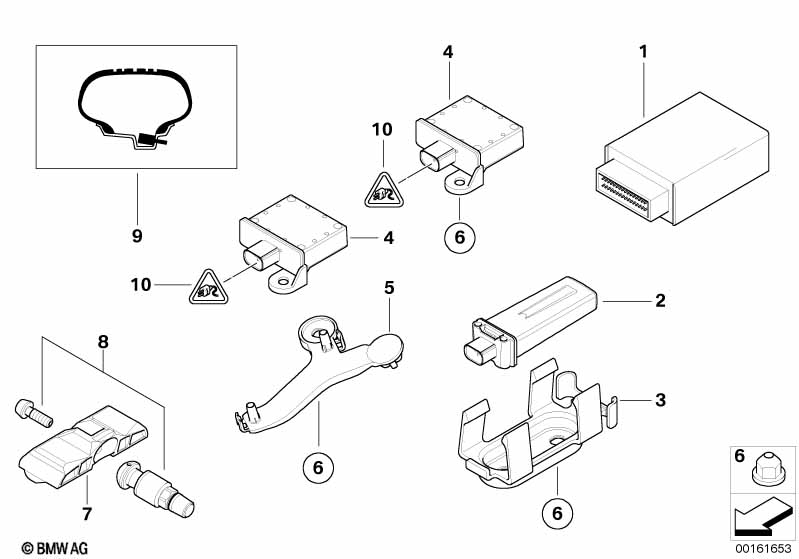

This Ringtryckskontrollampa (RDC) - styrdon technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Observera: På grund av EU:s batteriförordning är en komponentmärkning för RDC-sensorer resp. för komponenter med fast installerat batteri obligatorisk enligt lag! Det bifogade dokumentet måste vid köp av denna produkt skrivas ut och och överlämnas till kunden! För fordon med Landutförande Kanada och Däcktrycksvisning |
L838A=Ja S2VBA=Ja |
||||||||
| 01 | Styrdon RDC | 1 | 03/2006 | 36236785279 | $259.76 | Shop at ECS Tuning | ||||
| 02 | Mottagningsantenn RDC | 1 | 03/2006 | 36236771043 | $71.10 | Shop at ECS Tuning | ||||
| 03 | Hållare mottagningsantenn RDC | 1 | 03/2006 | 36206771836 | $1.82 | Shop at ECS Tuning | ||||
| 04 | Triggersändare RDC | 4 | 03/2006 | 36236771042 | $73.05 | Shop at ECS Tuning | ||||
| 05 | Hållare triggersändare RDC vänster fram | 1 | 03/2006 | 36206774700 | $3.08 | Shop at ECS Tuning | ||||
| 05 | Hållare triggersändare RDC höger fram | 1 | 03/2006 | 36206774701 | $3.08 | Shop at ECS Tuning | ||||
| 06 | Kupolmutter | M5 | 8 | 03/2006 | 51711934930 | $0.23 | Shop at ECS Tuning | |||
| endast i kombination med Skruvventil RDC |
||||||||||
| 07 | Hjulelektronik modul RDC | 433MHZ | 4 | 03/2006 | 36236798726 | Shop at ECS Tuning | ||||
| for samordning se bildtavlor BMW LM hjul | ||||||||||
| 08 | Skruvventil RDC | SCHWARZ | 4 | 03/2006 | 36146792828 | $13.90 | Shop at ECS Tuning | |||
| 08 | Skruvventil RDC | 4 | 03/2006 | 36146792829 | $13.90 | Shop at ECS Tuning | ||||
| 08 | Skruvventil RDC | GRÜN | 4 | 03/2006 | 36146792830 | Shop at ECS Tuning | ||||
| 08 | Skruvventil RDC | GELB | 4 | 03/2006 | 36146792831 | Shop at ECS Tuning | ||||
| 09 | Hänvisningsskylt "RDC" däcktryckkontroll | 4 | 03/2006 | 36111096235 | $0.78 | Shop at ECS Tuning | ||||
| 10 | Universal stickkontaktkåpa utan kod | 4 POL. | 1 | 03/2006 | 61138365356 | $3.10 | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt MQS ELA med kabel | 0,5-0,75 MM² AG | 2 | 03/2006 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Hylskontakt MQS ELA med kabel | 0,35-0,5 MM² AG | 2 | 03/2006 | 61130056961 | Shop at ECS Tuning | ||||
