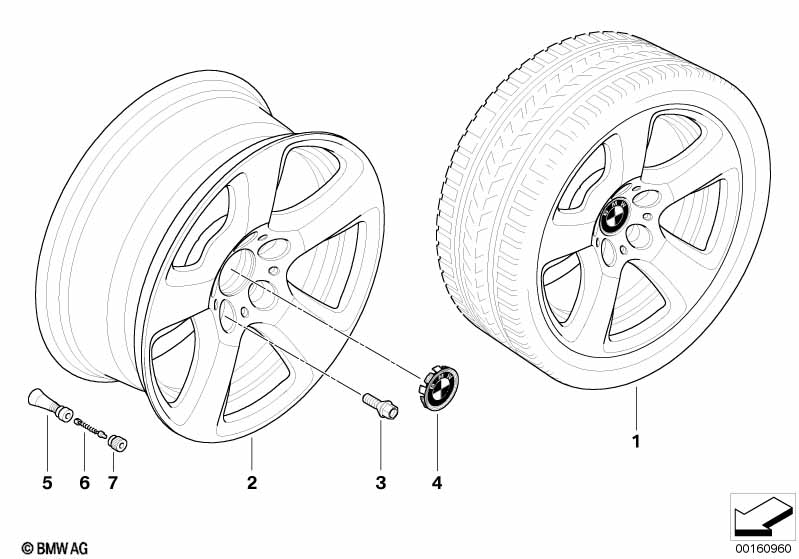

BMW LM-fälg stjärneker 243 for BMW 5 Series E60 525i (2004)
This BMW LM-fälg stjärneker 243 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med RSC = Runflat-System-Component |
=Ja |
|||||||||
| 02 | Lättmetallskivhjul | 71/2JX17 ET:20 | 4 | 36116777346 | $336.95 | Shop at ECS Tuning | ||||
| 03 | Hjulskruv svart | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Navkapselskydd med kromrand | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Gummiventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Ventilinsats | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Ventilkåpa | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
