BMW LM-fälg V-eker 413 - 17'' for BMW 3 Series F30 LCI 320dX (2018)

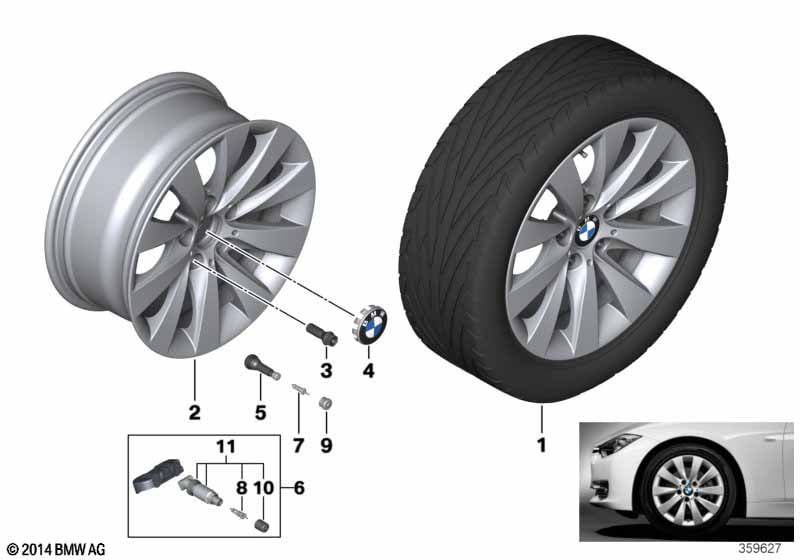

This BMW LM-fälg V-eker 413 - 17'' technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Observera: På grund av EU:s batteriförordning är en komponentmärkning för RDC-sensorer resp. för komponenter med fast installerat batteri obligatorisk enligt lag! Det bifogade dokumentet måste vid köp av denna produkt skrivas ut och och överlämnas till kunden! Anmärkning: Endast för bilar med godkännande enligt EG-BE. Den utvalda fälg-/ däckkombinationen måste eventuellt registreras. Kontrollera i bilens konformitetsförklaring, om fälg-/ däckkombinationen är registrerad. Om så inte är fallet, ska man vid behov i efterhand införa ett nationellt tillstånd! För fordon med BMW LM-fälg V-eker 413 |
S2FKA=Ja |
||||||||
| För fordon med Sportbromssystem |
SZP1A=Nej |
|||||||||
| 02 | LM-Fälg reflex-silver | 7,5JX17 ET:37 | 4 | 03/2014 | 36116796240 | Shop at ECS Tuning | ||||
| 02 | Lättmetallskivhjul svart | 7,5JX17 ET:37 | 4 | 03/2014 | 36116867126 | Shop at ECS Tuning | ||||
| 03 | Hjulskruv svart | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Navkapselskydd med kromrand | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| För fordon med Däcktrycksvisning |
S2VBA=Nej |
|||||||||
| 05 | Gummiventil | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| För fordon med Däcktrycksvisning |
S2VBA=Ja |
|||||||||
| 06 | Hjulelektronikmodul RDCi m skruvventil | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| För fordon med Däcktrycksvisning |
S2VBA=Nej |
|||||||||
| 07 | Ventilinsats | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| För fordon med Däcktrycksvisning |
S2VBA=Ja |
|||||||||
| 08 | Ventilinsats RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| För fordon med Däcktrycksvisning |
S2VBA=Nej |
|||||||||
| 09 | Ventilkåpa | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| För fordon med Däcktrycksvisning |
S2VBA=Ja |
|||||||||
| 10 | Ventilkåpa RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | Rep.sats skruvventil RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
