M dubbeleker,polerad (styl.24) for BMW 3 Series E36 328i (1994)

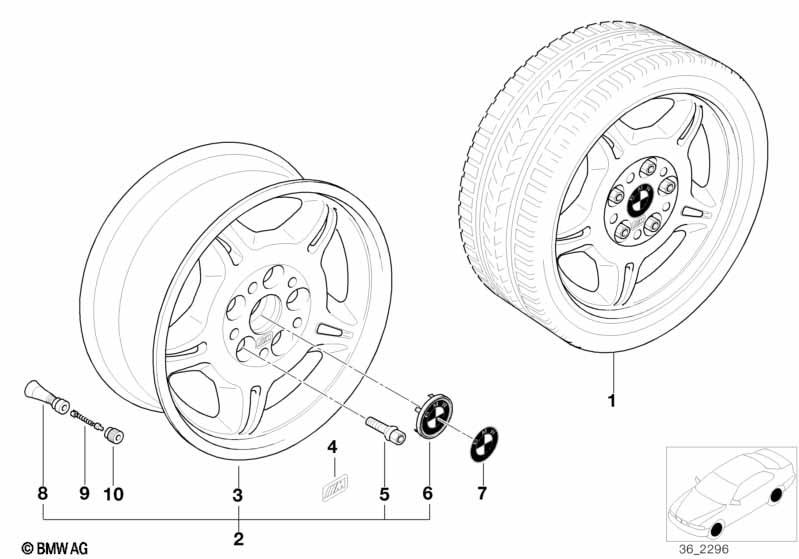

This M dubbeleker,polerad (styl.24) technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| OLIKA DAECKDIMENSIONER FRAM OCH BAK FRAMAXEL 225/45ZR17 BAKAXEL 245/40ZR17 |
||||||||||
| 01 | Sats komplett hjul sommar polerad | 1 | 85229408132 | TÜV 0017318 | Shop at ECS Tuning | |||||
| Däck Dunlop ENDAST I KOMBINATION MED MONTER.SATS STYRNING STOP |
||||||||||
| 02 | LM-Fälg polerad | 71/2JX17 ET:41 | 4 | 85329409851 | $605.00 | TÜV 0017318, TÜV 9790121, TÜV 9790123 | Shop at ECS Tuning | |||
| 02 | LM-Fälg polerad | 81/2JX17 ET:41 | 2 | 85329409852 | $689.13 | TÜV 0017318, TÜV 9790121 | Shop at ECS Tuning | |||
| 03 | LM-Fälg polerad | 71/2JX17 ET:41 | 4 | 36112227850 | $427.95 | Avslutad, +stomme, TÜV 0017318, TÜV 9790121, TÜV 9790123 | Shop at ECS Tuning | |||
| 03 | LM-Fälg polerad | 81/2JX17 ET:41 | 2 | 36112227860 | $454.95 | Avslutad, +stomme, TÜV 0017318, TÜV 9790121 | Shop at ECS Tuning | |||
| 04 | M dekal | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| 05 | Hjulskruv svart | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 06 | Navkapselskydd med kromrand | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 07 | Präglat BMW-emblem /lackerad | 4 | 36136767547 | $5.02 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Gummiventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 09 | Ventilinsats | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 10 | Ventilkåpa | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notering
- TÜV = Technischer Überwachungsverein (Neutral teknisk bevakningsorganis.)
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
