Tioeker-stil (styl.14) for BMW 3 Series E36 328i (1994)

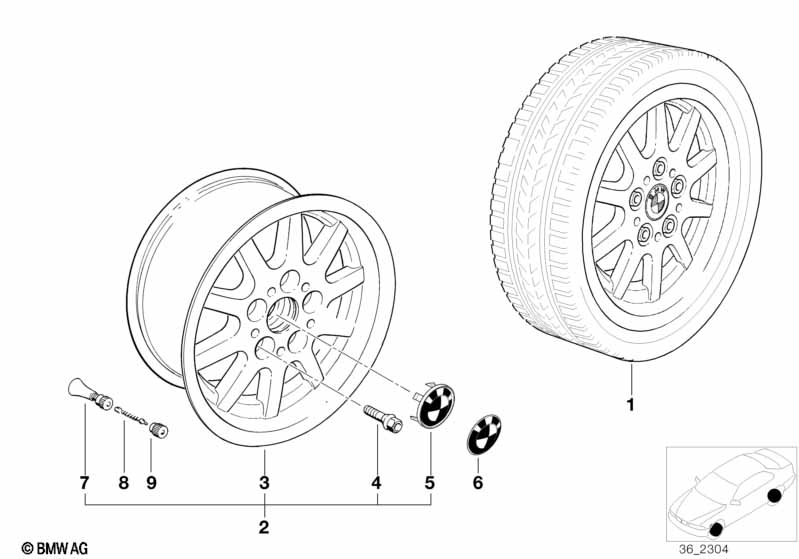

This Tioeker-stil (styl.14) technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Lättmetallskivhjul | 7JX15 ET:47 | 4 | 36111181875 | $265.77 | +stomme, TÜV 9786518, TÜV 9789069 | Shop at ECS Tuning | |||
| 04 | Hjulskruv svart | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Navkapselskydd med kromrand | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | Präglat BMW-emblem /lackerad | 4 | 36136767547 | $5.02 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Gummiventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Ventilinsats | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Ventilkåpa | 4 | 36121120779 | $0.60 | Shop at ECS Tuning |
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
- TÜV = Technischer Überwachungsverein (Neutral teknisk bevakningsorganis.)
- Avslutad = delen tillverkas inte längre.
