BMW LM-fälg dubbeleker 634 - 18" for BMW 5 Series G30 520i (2020)

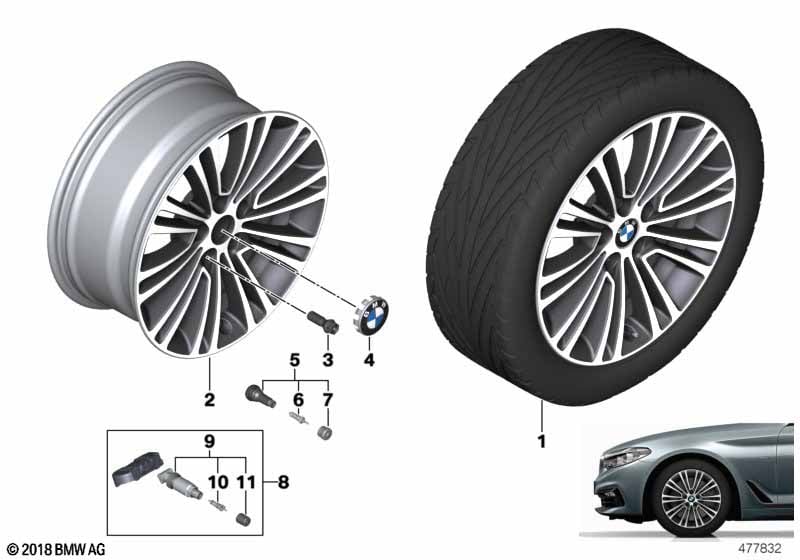

This BMW LM-fälg dubbeleker 634 - 18" technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Observera: På grund av EU:s batteriförordning är en komponentmärkning för RDC-sensorer resp. för komponenter med fast installerat batteri obligatorisk enligt lag! Det bifogade dokumentet måste vid köp av denna produkt skrivas ut och och överlämnas till kunden! För fordon med BMW lättmetallfälg D-eker 634 eller BMW lättmetallfälg D-eker 634 |
S24WA=Ja S24XA=Ja |
||||||||
| 02 | Fälg lättmetall Orbitgrey | 8JX18 ET:30 | 4 | 36116863420 | Shop at ECS Tuning | |||||
| 03 | Hjulskruv svart | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Navkapselskydd med kromrand | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| För fordon med Däcktrycksvisning |
S2VBA=Nej |
|||||||||
| 05 | Gummiventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Ventilinsats | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Ventilkåpa | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| För fordon med Däcktrycksvisning |
S2VBA=Ja |
|||||||||
| 08 | Hjulelektronikmodul RDCi m skruvventil | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| För fordon med Däcktrycksvisning och Radiofrekvens 315 MHZ |
S2VBA=Ja S876A=Ja |
|||||||||
| 08 | Hjulelektronikmodul RDCi m skruvventil | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| För fordon med Däcktrycksvisning |
S2VBA=Ja |
|||||||||
| 09 | Rep.sats skruvventil RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
| 10 | Ventilinsats RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| 11 | Ventilkåpa RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
