BMW LM-fälg W-eker 663 - 19" for BMW 5 Series G30 520i (2020)

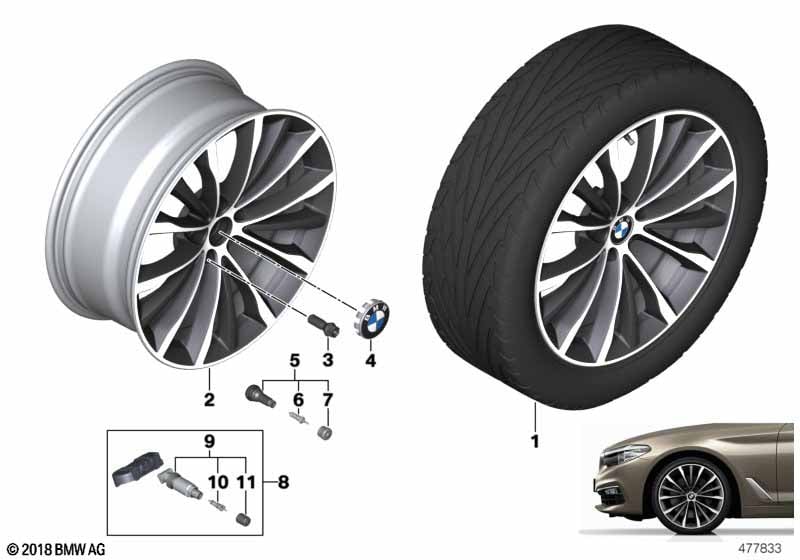

This BMW LM-fälg W-eker 663 - 19" technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Observera: På grund av EU:s batteriförordning är en komponentmärkning för RDC-sensorer resp. för komponenter med fast installerat batteri obligatorisk enligt lag! Det bifogade dokumentet måste vid köp av denna produkt skrivas ut och och överlämnas till kunden! För fordon med BMW LM-fälg W-eker 663 FG eller BMW LM-fälg W-eker 663 FG/GG/Nöddrift eller BMW lättm.fälg W-eker 663 bicolor eller BMW lättm.fälg W-eker 663 bicolor eller BMW lättm.fälg W-eker 663 bicolor |
S1VGA=Ja S1WEA=Ja S28XA=Ja S28YA=Ja S28ZA=Ja |
||||||||
| För fordon med BMW LM-fälg W-eker 663 FG eller BMW lättm.fälg W-eker 663 bicolor |
S1VGA=Ja S28YA=Ja |
|||||||||
| 02 | Lättmetallskivhjul Ferricgrey | 8JX19 ET:30 | 2 | 36116873942 | Shop at ECS Tuning | |||||
| För fordon med BMW LM-fälg W-eker 663 FG eller BMW lättm.fälg W-eker 663 bicolor endast för bakaxel |
S1VGA=Ja S28YA=Ja |
|||||||||
| 02 | Lättmetallskivhjul Ferricgrey | 9JX19 ET:44 | 2 | 36116874438 | Shop at ECS Tuning | |||||
| Blanddäckutrustning | ||||||||||
| För fordon med BMW LM-fälg W-eker 663 FG/GG/Nöddrift eller BMW lättm.fälg W-eker 663 bicolor eller BMW lättm.fälg W-eker 663 bicolor |
S1WEA=Ja S28XA=Ja S28ZA=Ja |
|||||||||
| 02 | Lättmetallskivhjul Ferricgrey | 8JX19 ET:30 | 4 | 36116873942 | Shop at ECS Tuning | |||||
| eller året-runt-däck | ||||||||||
| 03 | Hjulskruv svart | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Navkapselskydd med kromrand | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| För fordon med Däcktrycksvisning |
S2VBA=Nej |
|||||||||
| 05 | Gummiventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Ventilinsats | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Ventilkåpa | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| För fordon med Däcktrycksvisning |
S2VBA=Ja |
|||||||||
| 08 | Hjulelektronikmodul RDCi m skruvventil | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| För fordon med Däcktrycksvisning och Radiofrekvens 315 MHZ |
S2VBA=Ja S876A=Ja |
|||||||||
| 08 | Hjulelektronikmodul RDCi m skruvventil | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| För fordon med Däcktrycksvisning |
S2VBA=Ja |
|||||||||
| 09 | Rep.sats skruvventil RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
| 10 | Ventilinsats RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| 11 | Ventilkåpa RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
