BMW lättm.fälg dubbeleker 549 - 17" for BMW 2 Series F44 Gran Coupé 220iX (2024)

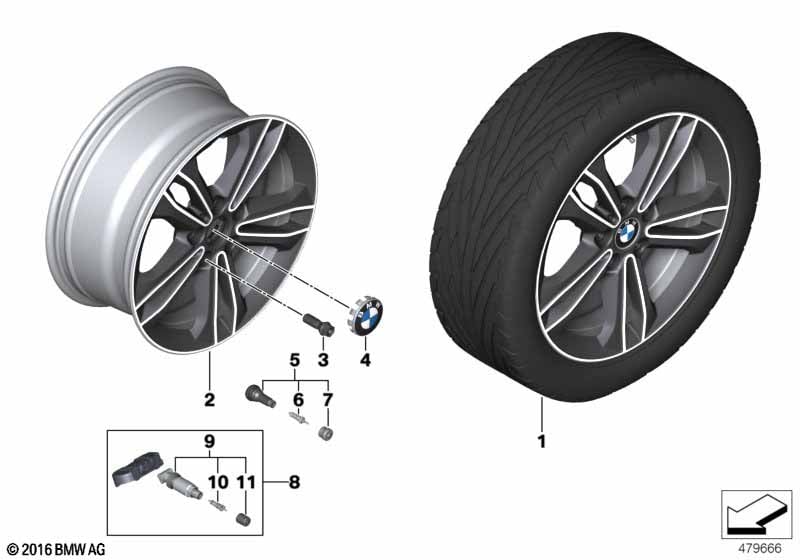

This BMW lättm.fälg dubbeleker 549 - 17" technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Observera: På grund av EU:s batteriförordning är en komponentmärkning för RDC-sensorer resp. för komponenter med fast installerat batteri obligatorisk enligt lag! Det bifogade dokumentet måste vid köp av denna produkt skrivas ut och och överlämnas till kunden! Anmärkning: Endast för bilar med godkännande enligt EG-BE. Den utvalda fälg-/ däckkombinationen måste eventuellt registreras. Kontrollera i bilens konformitetsförklaring, om fälg-/ däckkombinationen är registrerad. Om så inte är fallet, ska man vid behov i efterhand införa ett nationellt tillstånd! För fordon med BMW LM-fälg dubbeleker 549 OG/GG/HP eller BMW LM-fälg dubbeleker 549 OG/GG/Nöddr eller BMW LM-fälg dubbeleker 549 OG/GG |
S1USA=Ja S24UA=Ja S26MA=Ja |
||||||||
| 01 | Delen kan ej beställas separat | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| För fordon med M-sportbroms och M SPORTBROMS, RÖD HÖGGLÄNSANDE |
S2NHA=Nej S3M2A=Nej |
|||||||||
| 02 | Fälg lättmetall Orbitgrey | 7,5JX17 ET:54 | 4 | 36116856087 | Shop at ECS Tuning | |||||
| glanspolerad | ||||||||||
| 03 | Hjulskruv svart | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| För fordon med BMW M HERITAGE-LOGOTYPER |
S3MQA=Nej |
|||||||||
| 04 | Navkapselskydd med kromrand | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| För fordon med BMW M HERITAGE-LOGOTYPER |
S3MQA=Ja |
|||||||||
| 04 | Navkapsel 50 år M | BMW | 4 | 36135A37E40 | Shop at ECS Tuning | |||||
| För fordon med Däcktrycksvisning |
S2VBA=Nej |
|||||||||
| 05 | Gummiventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Ventilinsats | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Ventilkåpa | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| För fordon med Däcktrycksvisning |
S2VBA=Ja |
|||||||||
| 08 | Hjulelektronik modul RDC 433MHZ | 4 | 36106877937 | Shop at ECS Tuning | ||||||
| För fordon med Däcktrycksvisning och Radiofrekvens 315 MHZ |
S2VBA=Ja S876A=Ja |
|||||||||
| 08 | Hjulelektronikmodul RDC 315 MHZ | 4 | 36106877934 | Shop at ECS Tuning | ||||||
| För fordon med Däcktrycksvisning |
S2VBA=Ja |
|||||||||
| 09 | Rep.sats skruvventil RDCi | 4 | 36106879168 | Shop at ECS Tuning | ||||||
| 10 | Ventilinsats RDCi | 4 | 36106879165 | Shop at ECS Tuning | ||||||
| 11 | Ventilkåpa RDCi | 4 | 36106879164 | Shop at ECS Tuning | ||||||
