Fraemre sida for BMW 5 Series E34 540i (1995)

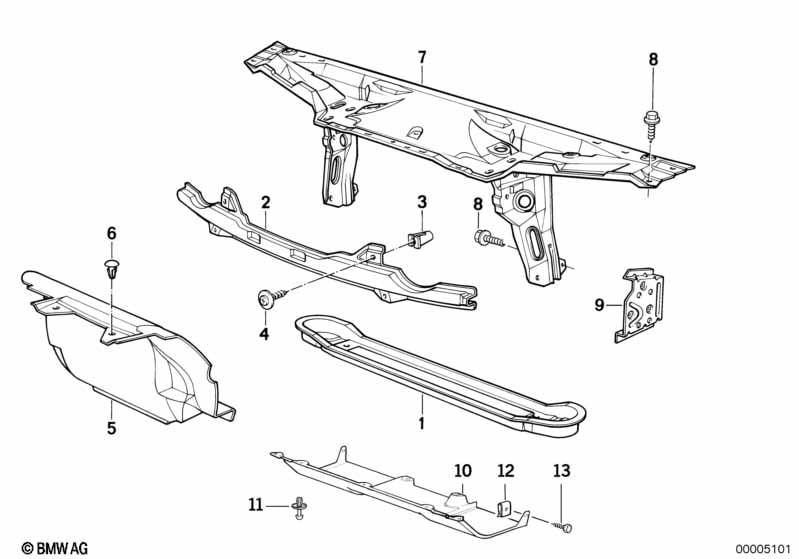

This Fraemre sida technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tvaerbalk fram | 1 | 41111957186 | $100.21 | Shop at ECS Tuning | |||||
| 02 | Stöd | 1 | 51711934328 | $53.86 | Shop at ECS Tuning | |||||
| 03 | Expandermutter | ST 4.8 | 4 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 04 | Plaatskruv | ST4,8X16 Z1 SW | 2 | 07119904181 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Luftledning | 1 | 04/1989 | 51718117499 | $45.26 | Avslutad | Shop at ECS Tuning | |||
| 06 | Klammer | 4 | 51711916039 | $0.35 | Shop at ECS Tuning | |||||
| 07 | Fraemre sida | 1 | 41131978181 | $261.41 | Shop at ECS Tuning | |||||
| 08 | Sexkantplaatskruv | ST6,3X19-C-Z2 | 6 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 09 | Uppbaerning stoetfangarfaeste vaenster | 1 | 41148107687 | $5.95 | Shop at ECS Tuning | |||||
| 09 | Uppbaerning stoetfangarfaeste hoeger | 1 | 41148107688 | $5.95 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
