Dörr bak for BMW 5 Series E12 520 (1976)

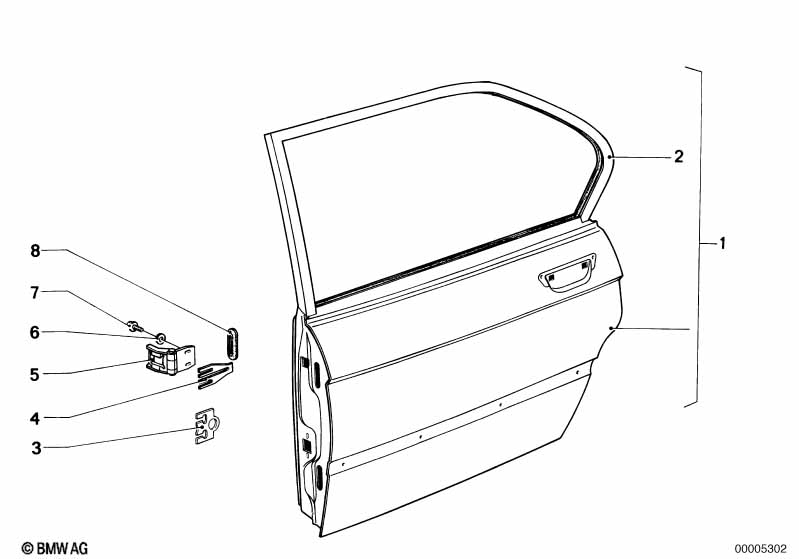

This Dörr bak technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dörr bak vänster | 1 | 41521879077 | $602.64 | Shop at ECS Tuning | |||||
| 01 | Dörr bak höger | 1 | 41521879078 | $661.80 | Shop at ECS Tuning | |||||
| För fordon med Landsutförande Australien |
L810A=Ja |
|||||||||
| 01 | Dörr bak vänster | 1 | 41521874987 | $563.58 | Avslutad | Shop at ECS Tuning | ||||
| 01 | Dörr bak höger | 1 | 41521874988 | $563.58 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Foensterram bak vaenst. | 1 | 41521820619 | $95.70 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Foensterram bak hoeger | 1 | 41521820620 | $95.70 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Gaangjaernsskiva | 1,00MM | X | 41511873064 | $2.52 | Shop at ECS Tuning | ||||
| 04 | Gaangjaernsskiva | 1,00MM | X | 41511801253 | $10.32 | Shop at ECS Tuning | ||||
| 04 | Gaangjaernsskiva | 0,75MM | X | 41511801254 | $7.49 | Avslutad | Shop at ECS Tuning | |||
| 05 | Gaangjaern | 4 | 41521874226 | $41.01 | Shop at ECS Tuning | |||||
| 06 | Underlagsplaata | A8,4X25 | X | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Sexkantskruv med bricka | M8X25-Z4 | X | 07119915083 | $3.15 | Shop at ECS Tuning | ||||
| 08 | Packning | 4 | 51211807212 | $2.73 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Dörr bak?
- This technical diagram illustrates the Dörr bak within the Kaross - pletdetaljer group for the 5 Series E12 520 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Dörr bak vänster (Part #41521879077).
- Which models use the hardware listed in this Dörr bak?
- The hardware and components featured in the Dörr bak are specific to the 5 Series E12 520 produced during 1976. These technical specifications ensure that parts like the Dörr bak vänster (41521879077) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Dörr bak assembly?
- Each item in the Dörr bak corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Dörr bak vänster by locating its position on the schematic, which then links to the official BMW part number 41521879077 for the Kaross - pletdetaljer section.
