Stängningssystem dörr bak for BMW 3 Series E36 M3 (1996)

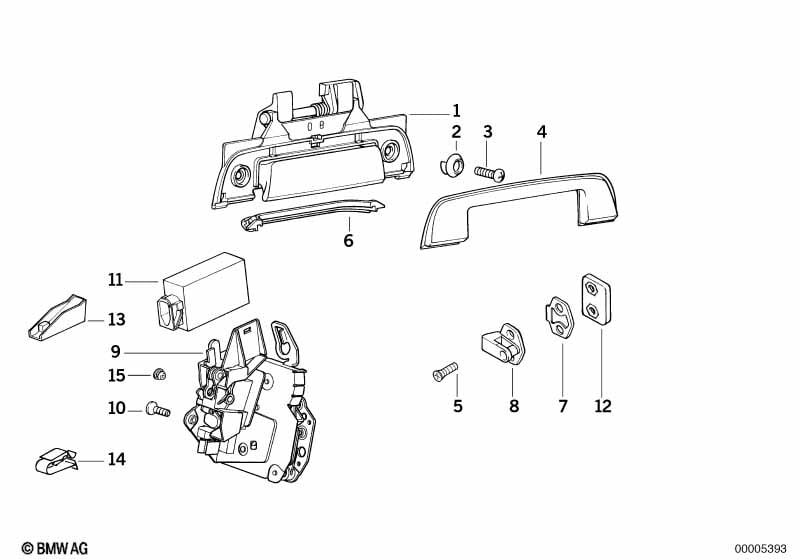

This Stängningssystem dörr bak technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dörröppnare untanför vänster | 1 | 51221960825 | $54.24 | Shop at ECS Tuning | |||||
| 01 | Dörröppnare utanför höger | 1 | 51221960826 | $54.24 | Shop at ECS Tuning | |||||
| 02 | Packning | 4 | 51211908758 | $0.21 | Shop at ECS Tuning | |||||
| 03 | Torx skruv | M5X12 | 4 | 51218105499 | $1.34 | Shop at ECS Tuning | ||||

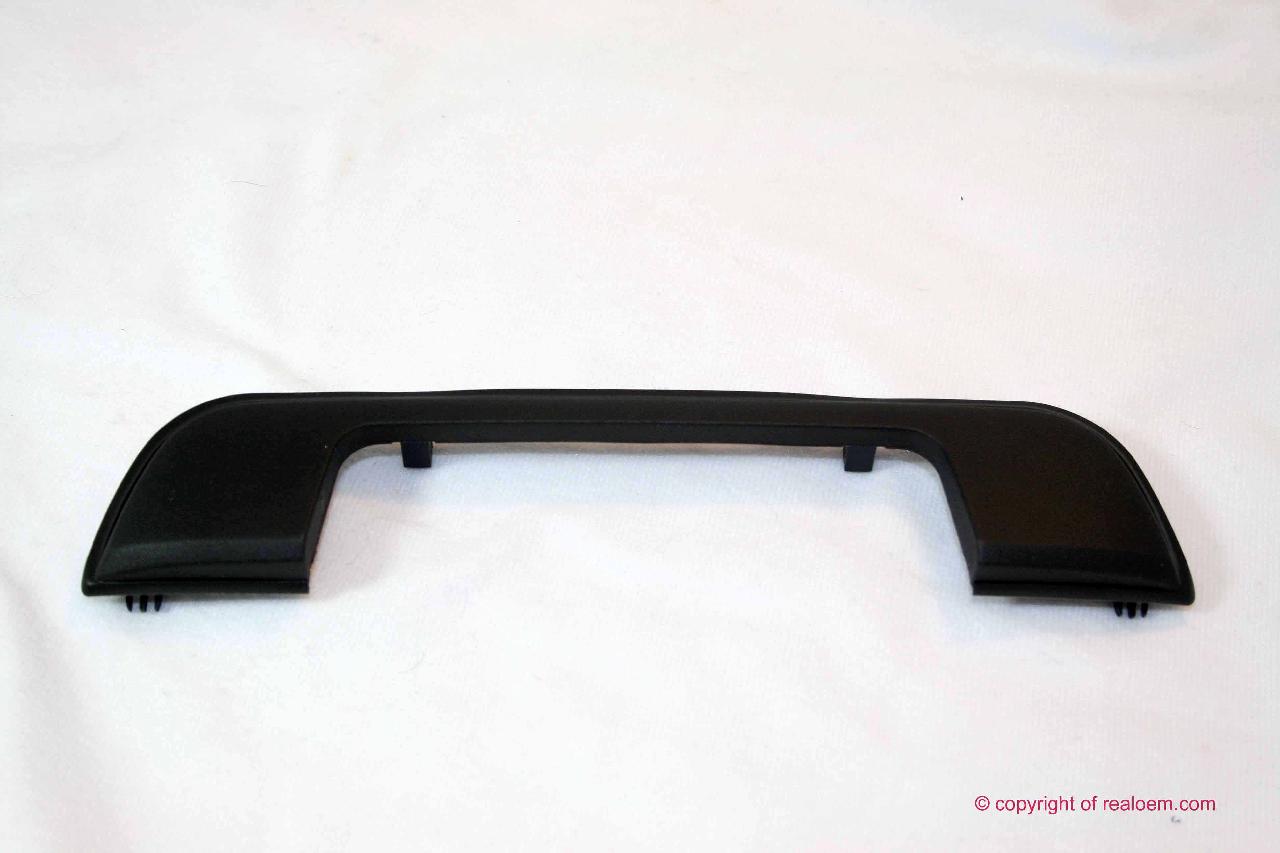

| 04 | Plaat bak | 2 | 51228119076 | $15.67 | Shop at ECS Tuning | |||||
| 05 | Torx-skruv med saenkhuvud | M8X18 | 4 | 51211928850 | $0.52 | Shop at ECS Tuning | ||||
| 06 | Underlägg | 2 | 51211977669 | $3.98 | Shop at ECS Tuning | |||||
| 07 | Packning slutkil | 2 | 01/1991 | 51218124668 | $2.50 | Shop at ECS Tuning | ||||
| För fordon med DWA-Stöldlarmanläggning |
=Ja |
|||||||||
| 07 | Packning slutkil | 2 | 01/1991 | 51218127140 | $2.50 | SI 510691373 | Shop at ECS Tuning | |||
| 08 | Slutkil | 2 | 51228122299 | $12.43 | Avslutad | Shop at ECS Tuning | ||||
| För fordon med DWA-Stöldlarmanläggning |
=Ja |
|||||||||
| 08 | Slutkil | 2 | 51218105511 | $44.32 | SI 510691373 | Shop at ECS Tuning | ||||
| FOER PERSONBILAR MED OCH UTAN CENTRALLAAS |
||||||||||
| 09 | Laas bak vaenster | 1 | 51228122419 | $170.37 | Shop at ECS Tuning | |||||
| 09 | Laas bak hoeger | 1 | 51228122420 | $170.37 | Shop at ECS Tuning | |||||
| 10 | Torx-skruv med plaata | M6X12 | 6 | 51219130334 | $0.39 | Shop at ECS Tuning | ||||
| För fordon med Centrallaas |
=Ja |
|||||||||
| 11 | Ställdon | 2 | 67118353011 | Shop at ECS Tuning | ||||||
| 12 | Gaengadplatta | M8 | 2 | 51211960194 | $2.05 | Shop at ECS Tuning | ||||
| 13 | Skydd | 2 | 51218119277 | $3.47 | Shop at ECS Tuning | |||||
| För fordon med Centrallaas |
=Ja |
|||||||||
| 14 | Kabelhållare | D=5MM | 2 | 61131379079 | $0.48 | Shop at ECS Tuning | ||||
| 15 | Bussning | 4 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
Notering
- SI = Service Information
- Avslutad = delen tillverkas inte längre.
