Rumsgolv/hjulhus bak for BMW 3 Series E36 320i (1991)

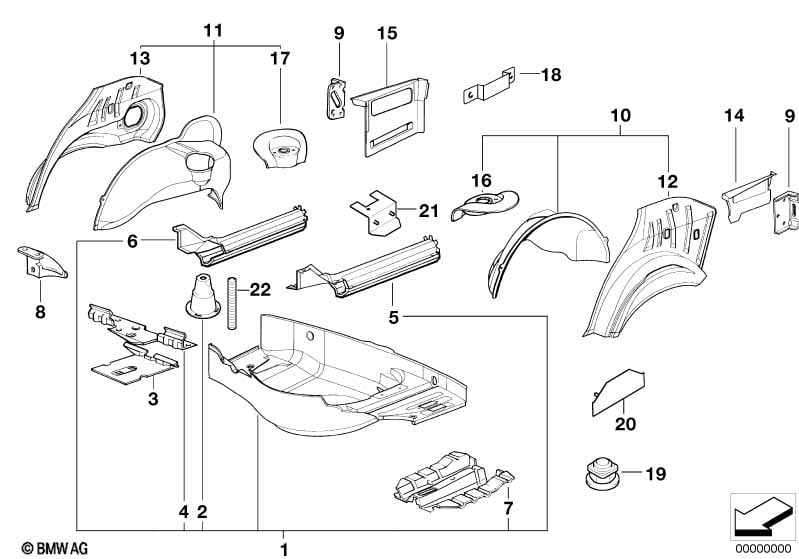

This Rumsgolv/hjulhus bak technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bagagerumsgolv | 1 | 09/1994 | 41128122351 | $498.39 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Batterihaallare | 1 | 09/1994 | 41128132834 | $15.62 | Shop at ECS Tuning | ||||
| 02 | Haallare reservring | 1 | 51718108473 | $12.65 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Gängad stång | M8X192 | 1 | 41118209460 | $3.62 | Shop at ECS Tuning | ||||
| 03 | Batterihaallare | 1 | 09/1994 | 41128132834 | $15.62 | Shop at ECS Tuning | ||||
| 04 | Batterihaallare | 1 | 41128122352 | $15.62 | Shop at ECS Tuning | |||||
| 05 | Längsbalk vänster bak | 1 | 41118122353 | $120.63 | Shop at ECS Tuning | |||||
| 06 | Längsbalk bak höger | 1 | 41118122354 | $120.63 | Shop at ECS Tuning | |||||
| 07 | Hållare avgasrör bak | 1 | 41118122355 | $12.43 | Shop at ECS Tuning | |||||
| 08 | Hållare bromsolje behaallare | 1 | 41148122359 | $5.86 | Shop at ECS Tuning | |||||
| 09 | Hållare f stötfangare sidled. bak | 2 | 41148135355 | $9.57 | Shop at ECS Tuning | |||||
| 10 | Hjulhus bak vänster | 1 | 41148151005 | $419.84 | Avslutad | Shop at ECS Tuning | ||||
| 11 | Hjulhus bak höger | 1 | 41148151006 | $419.84 | Shop at ECS Tuning | |||||
| 12 | Hjulhus bak vänster | 1 | 41148151003 | $165.89 | Avslutad | Shop at ECS Tuning | ||||
| 13 | Hjulhus bak höger | 1 | 41148151004 | $165.89 | Shop at ECS Tuning | |||||
| 14 | Förlängning hjulhus vänster | 1 | 41148122343 | $22.60 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Plugg | D=14,2MM | 1 | 51711866800 | $0.32 | Shop at ECS Tuning | ||||
| FOER BILAR UTAN SKJUTBART LYFTTAK | ||||||||||
| 15 | Förlängning hjulhus höger | 1 | 41148122344 | $22.60 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Plugg | D=14,2MM | 1 | 51711866800 | $0.32 | Shop at ECS Tuning | ||||
| FOER BILAR UTAN SKJUTBART LYFTTAK | ||||||||||
| 16 | Upptagande foer stoetdaempare vaenster | 1 | 41148169027 | $10.02 | Shop at ECS Tuning | |||||
| 17 | Upptagande foer stoetdaempare hoeger | 1 | 41148169028 | $10.02 | Shop at ECS Tuning | |||||
| 19 | Jordningsbultar | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 19 | Jordningsbultar | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 22 | Gängad stång | M8X192 | 1 | 41118209460 | $3.62 | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
