Doerr manoever/doerr laas fram for BMW 2500-3.3Li 2800 (1971)

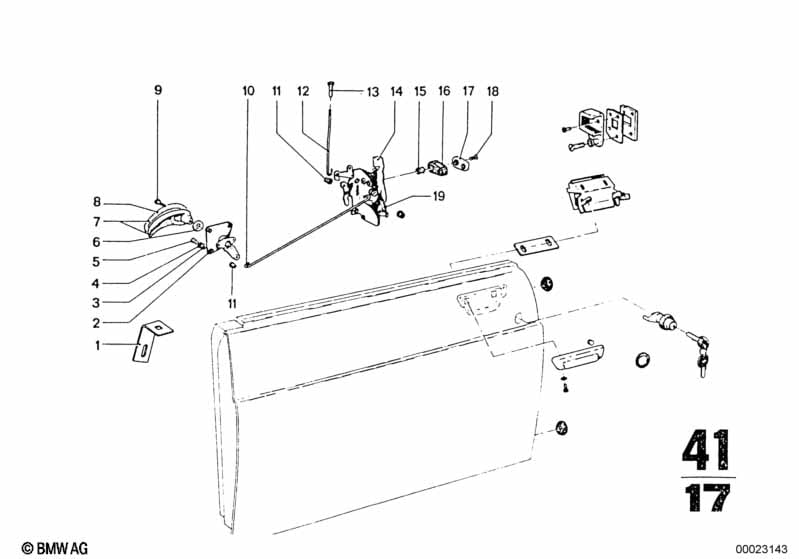

This Doerr manoever/doerr laas fram technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vinkel | 2 | 41511800393 | Avslutad | Shop at ECS Tuning | |||||
| 01 | Vinkel | 2 | 41511800395 | Avslutad | Shop at ECS Tuning | |||||
| 02 | Fjärrmanoevrering vänster | 1 | 51211800665 | $9.77 | Shop at ECS Tuning | |||||
| 02 | Fjärrmanoevrering höger | 1 | 51211800666 | $9.77 | Shop at ECS Tuning | |||||
| 03 | Underlagsplaata | 5.3-140 HV-ZNS | 6 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Taggbricka | A5,1 | 1 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Sexkantskruv | M5X8 | 6 | 07119913212 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Skydd | 2 | 51211800789 | $0.55 | Shop at ECS Tuning | |||||
| 07 | Handtag vaenster | 1 | 51211806003 | $38.11 | Shop at ECS Tuning | |||||
| 07 | Handtag hoeger | 1 | 51211806004 | $38.11 | Shop at ECS Tuning | |||||
| 08 | Avtäckning vänster | 1 | 51211803751 | $4.61 | Shop at ECS Tuning | |||||
| 08 | Avtaeckning hoeger | 1 | 51211803752 | $4.61 | Shop at ECS Tuning | |||||
| 09 | Koniskskruv | 2 | 51211800790 | $0.67 | Shop at ECS Tuning | |||||
| 10 | Förbindelsestag | 2 | 51211800668 | Avslutad | Shop at ECS Tuning | |||||
| 11 | Bussning | 2 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 12 | Manoeverstang | 2 | 51221800503 | Avslutad | Shop at ECS Tuning | |||||
| 13 | Knapp | 2 | 51216654120 | $2.40 | Avslutad | Shop at ECS Tuning | ||||
| 14 | Laas fram vaenster | 1 | 07/1969 | 02/1977 | 51211823789 | Avslutad | Shop at ECS Tuning | |||
| 14 | Laas fram hoeger | 1 | 07/1969 | 02/1977 | 51211823790 | $68.36 | Avslutad | Shop at ECS Tuning | ||
| 15 | Bussning | 2 | 51211823488 | $1.38 | Shop at ECS Tuning | |||||
| 16 | Buffert | 2 | 51211823487 | $6.36 | Shop at ECS Tuning | |||||
| 17 | Platta | 2 | 51211874709 | $11.68 | Avslutad | Shop at ECS Tuning | ||||
| 18 | Skruv med saenkhuvud | M6X16 | 4 | 07119900816 | $0.36 | Shop at ECS Tuning | ||||
| 19 | Fjäder | 1 | 51211807217 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
