Sidovägg fram for BMW 700LS (1964)

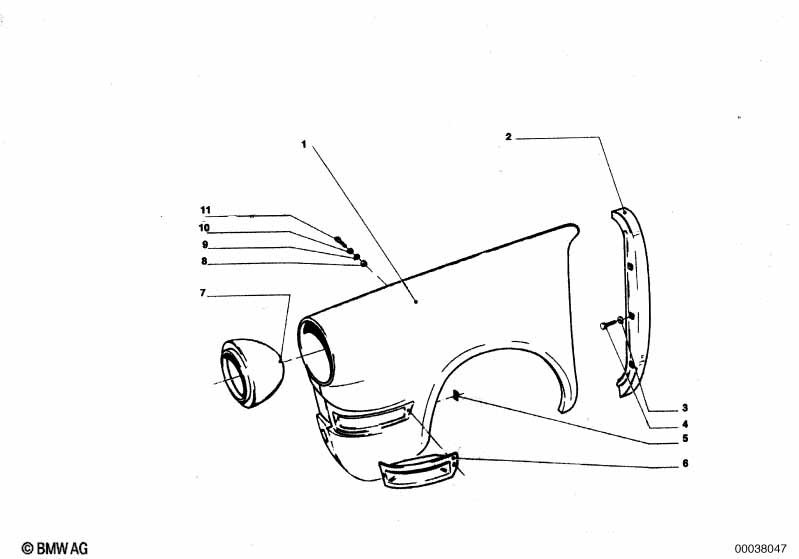

This Sidovägg fram technical drawing provides a detailed breakdown of the assembly for the 700LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sidovägg fram vänster | 1 | 41355001702 | Avslutad | Shop at ECS Tuning | |||||
| 01 | Sidovägg fram höger | 1 | 41355001703 | Avslutad | Shop at ECS Tuning | |||||
| 03 | Underlagsplaata | A6,4-200HV-ZNS3 | X | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Fjaederring | B6 | X | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Linsskruv | M6X16 | 6 | 07119906423 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Underlagsplaata | A6,4-200HV-ZNS3 | X | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Fjaederring | B6 | X | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Sexkantmutter | M6-8 CR | X | 07119922050 | $0.42 | Shop at ECS Tuning | ||||
| 10 | Underlagsplaata | A6,4-200HV-ZNS3 | 37 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Sexkantskruv | M6X15-U1-8.8 | 6 | 07119902937 | $0.80 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
