Mellanvägg bagagerummets for BMW 5 Series E60 525i (2005)

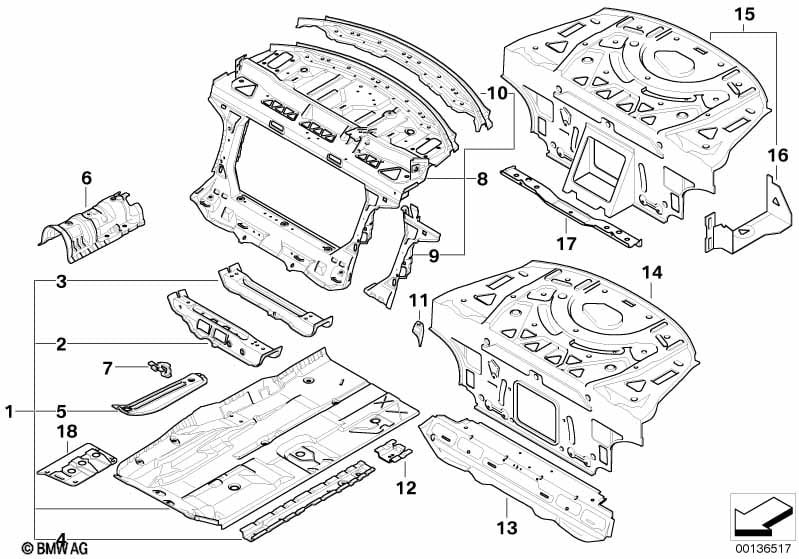

This Mellanvägg bagagerummets technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Golvplåt vänster | 1 | 41127111197 | $536.09 | Avslutad | Shop at ECS Tuning | ||||
| 01 | Golvplåt höger | 1 | 41127111198 | $536.09 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Konsol saete fram vaenster | 1 | 41117111201 | $54.22 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Konsol saete fram hoeger | 1 | 41117111202 | $54.22 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Konsol saete bak vaenster | 1 | 41117111205 | $54.22 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Konsol saete bak hoeger | 1 | 41117111206 | $54.22 | Shop at ECS Tuning | |||||
| 04 | Förlängning motorfäste | 2 | 41127111199 | $54.22 | Shop at ECS Tuning | |||||
| 05 | Förstärkning motorfäste ovan vänster | 1 | 41127111203 | $43.41 | Shop at ECS Tuning | |||||
| 05 | Förstärkning motorfäste ovan höger | 1 | 41127111204 | $43.41 | Shop at ECS Tuning | |||||
| 06 | Konsol kardanaxelns mellanlager | 1 | 41127111184 | $54.22 | Shop at ECS Tuning | |||||
| 07 | Hållare f lager kopplingsarm | 1 | 41127111183 | $3.30 | Shop at ECS Tuning | |||||
| 08 | Mell.vägg bagageutrym.f nedfällb.baksäte | 1 | 41137111207 | $621.97 | Shop at ECS Tuning | |||||
| 09 | Förstärkning mellanvägg vänster | 1 | 41137111209 | $45.58 | Avslutad | Shop at ECS Tuning | ||||
| 09 | Förstärkning mellanvägg höger | 1 | 41137111210 | $45.58 | Avslutad | Shop at ECS Tuning | ||||
| 10 | Ram-bakruta undre | 1 | 41127111211 | $60.29 | Shop at ECS Tuning | |||||
| 11 | Lagerbock ryggstoed yttre vaenster | 1 | 41147111261 | $7.63 | Avslutad | Shop at ECS Tuning | ||||
| 11 | Lagerbock ryggstoed yttre hoeger | 1 | 41147111262 | $7.52 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
