Framkonstruktion haallare vaenster for BMW 5 Series E60 530xi (2007)

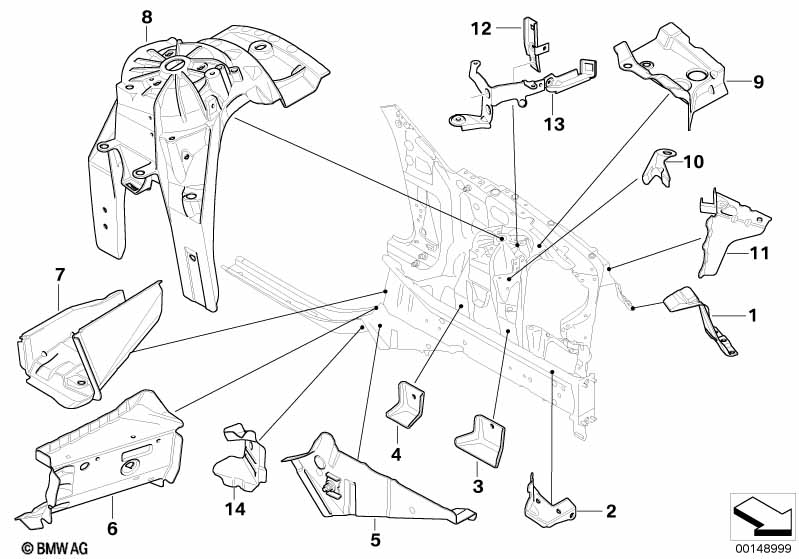

This Framkonstruktion haallare vaenster technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Haallare skaerm fram vaenster | 1 | 41217111177 | $5.72 | Shop at ECS Tuning | |||||
| 02 | Hållare rutespolarvatten reservoar bak | 1 | 41147111098 | $3.28 | Shop at ECS Tuning | |||||
| 03 | Vinkelstoed fram | 1 | 41147111099 | $5.35 | Shop at ECS Tuning | |||||
| 04 | Vinkelstoed bak | 1 | 41147111100 | $2.65 | Shop at ECS Tuning | |||||
| 05 | Foerlaengn.motorfaeste vaenster | 1 | 41007172014 | $54.22 | Shop at ECS Tuning | |||||
| 06 | Stödbärare apparatbräde vänster | 1 | 41117111095 | $84.21 | Shop at ECS Tuning | |||||
| 07 | Foerstaerkning vindsplatta vaenster | 1 | 41117111093 | $54.22 | Shop at ECS Tuning | |||||
| 09 | Slutbleck stödbärare vänster | 1 | 41217111809 | $26.33 | Shop at ECS Tuning | |||||
| 10 | Hållare bromsledningar vaenster | 1 | 41117111181 | $4.15 | Shop at ECS Tuning | |||||
| 12 | Hållare stödpunkt B+ | 1 | 61146932006 | $5.92 | Shop at ECS Tuning | |||||
| 14 | Stöd crash box vänster | 1 | 41137178979 | $5.37 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 530xi Framkonstruktion haallare vaenster?
- This technical diagram illustrates the Framkonstruktion haallare vaenster within the Kaross - pletdetaljer group for the 5 Series E60 530xi produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Haallare skaerm fram vaenster (Part #41217111177).
- Which models use the hardware listed in this Framkonstruktion haallare vaenster?
- The hardware and components featured in the Framkonstruktion haallare vaenster are specific to the 5 Series E60 530xi produced during 2007. These technical specifications ensure that parts like the Haallare skaerm fram vaenster (41217111177) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Framkonstruktion haallare vaenster assembly?
- Each item in the Framkonstruktion haallare vaenster corresponds to the numbered list below the illustration. For the 5 Series E60 530xi, you can identify the Haallare skaerm fram vaenster by locating its position on the schematic, which then links to the official BMW part number 41217111177 for the Kaross - pletdetaljer section.
