Framkonstruktion haallare hoeger for BMW 5 Series E60 525i (2005)

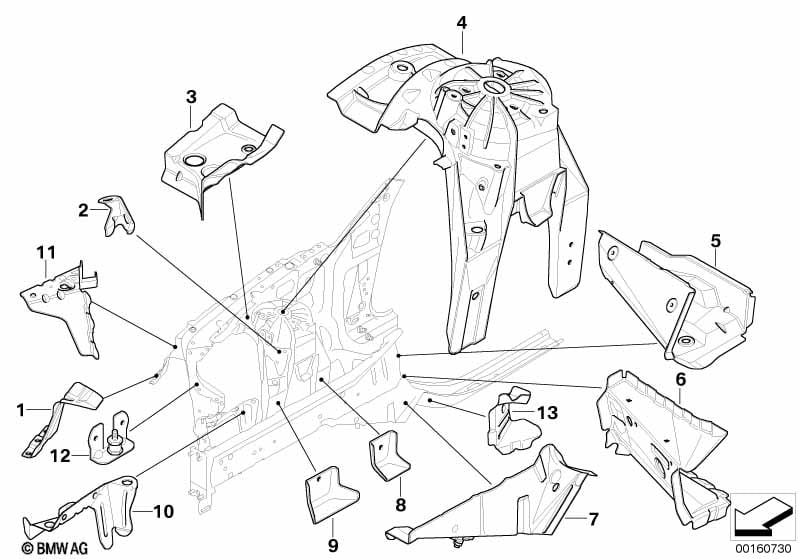

This Framkonstruktion haallare hoeger technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Haallare skaerm fram hoeger | 1 | 41217111178 | $5.72 | Shop at ECS Tuning | |||||
| 02 | Hållare bromsledningar hoeger | 1 | 41117111182 | $4.35 | Shop at ECS Tuning | |||||
| 03 | Slutbleck stödbärare höger | 1 | 41217111810 | $26.33 | Shop at ECS Tuning | |||||
| 05 | Foerstaerkning vindsplatta hoeger | 1 | 41117111094 | $54.22 | Shop at ECS Tuning | |||||
| 06 | Stödbärare apparatbräde höger | 1 | 41117111096 | $84.21 | Shop at ECS Tuning | |||||
| 07 | Foerlaengn.motorfaeste hoeger | 1 | 41117111086 | $54.22 | Shop at ECS Tuning | |||||
| 08 | Vinkelstoed bak | 1 | 41147111100 | $2.65 | Shop at ECS Tuning | |||||
| 09 | Vinkelstoed fram | 1 | 41147111099 | $5.35 | Shop at ECS Tuning | |||||
| 10 | Multifunktion-Kontakt | 1 | 41137131465 | $5.27 | Shop at ECS Tuning | |||||
| 13 | Stöd crash box, höger | 1 | 51717114914 | $6.15 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Linsskruv | ISA M6X14 MK | 4 | 07147156542 | $0.25 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i Framkonstruktion haallare hoeger?
- This technical diagram illustrates the Framkonstruktion haallare hoeger within the Kaross - pletdetaljer group for the 5 Series E60 525i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Haallare skaerm fram hoeger (Part #41217111178).
- Which models use the hardware listed in this Framkonstruktion haallare hoeger?
- The hardware and components featured in the Framkonstruktion haallare hoeger are specific to the 5 Series E60 525i produced during 2005. These technical specifications ensure that parts like the Haallare skaerm fram hoeger (41217111178) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Framkonstruktion haallare hoeger assembly?
- Each item in the Framkonstruktion haallare hoeger corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the Haallare skaerm fram hoeger by locating its position on the schematic, which then links to the official BMW part number 41217111178 for the Kaross - pletdetaljer section.
