Förbindelsestycke framkonstrukt./sidoram for BMW 5 Series E60 525i (2004)

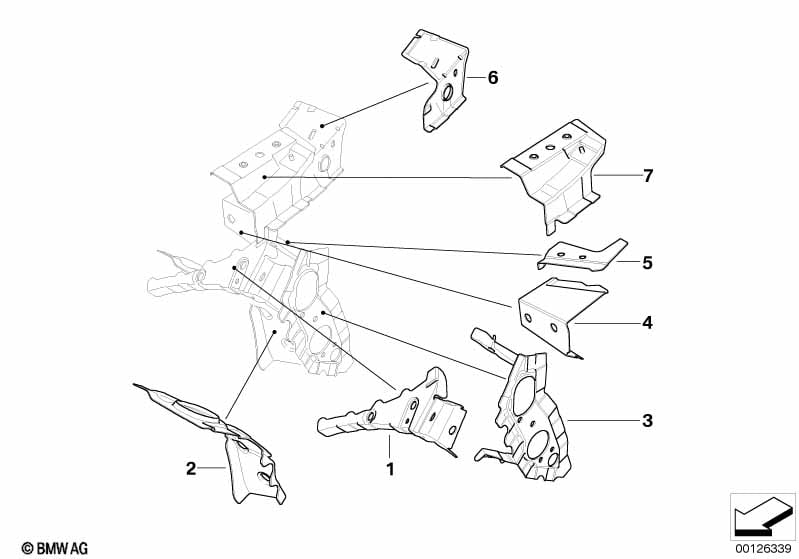

This Förbindelsestycke framkonstrukt./sidoram technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stoedbaerare, skaerm, nere vänster | 1 | 41147111287 | $84.21 | Shop at ECS Tuning | |||||
| 01 | Stoedbaerare, skaerm, nere höger | 1 | 41147111288 | $84.21 | Shop at ECS Tuning | |||||
| 02 | Slutbleck stödbärare vänster | 1 | 41147111291 | $31.32 | Shop at ECS Tuning | |||||
| 02 | Slutbleck stödbärare höger | 1 | 41147111292 | $31.32 | Shop at ECS Tuning | |||||
| 03 | Förbindning sidoram, nere vänster | 1 | 41217111327 | $11.68 | Shop at ECS Tuning | |||||
| 03 | Förbindning sidoram, nere höger | 1 | 41217111328 | $11.68 | Shop at ECS Tuning | |||||
| 05 | Förbindning sidoram, upptil vänster | 1 | 41217117219 | $3.44 | Shop at ECS Tuning | |||||
| 05 | Förbindning sidoram, upptil höger | 1 | 41217117220 | $3.44 | Shop at ECS Tuning | |||||
| 06 | Uppsats slutbleck vänster | 1 | 41217117221 | $3.44 | Shop at ECS Tuning | |||||
| 06 | Uppsats slutbleck höger | 1 | 41217117222 | $3.44 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
