Bagagerumsbotten mont.delar for BMW 5 Series E60 530xi (2007)

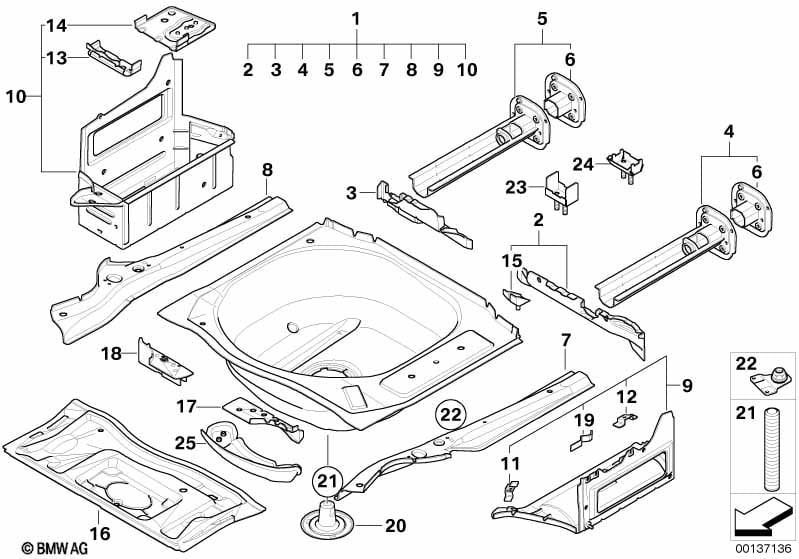

This Bagagerumsbotten mont.delar technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Utförs med reparationstekniken limning/nitning. |
||||||||||
| 01 | Bagagerumsgolv | 1 | 41007111212 | $1113.10 | Avslutad | Shop at ECS Tuning | ||||
| Krävs för reparationen | ||||||||||
| -- | Blindnit N3 | 16 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Skruv | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Karosserilim K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Rengöringsmedel R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Tätningsmassa D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 02 | Tvärbalk bagagerumsgolv vänster | 1 | 41127111213 | $89.90 | Shop at ECS Tuning | |||||
| 03 | Tvärbalk bagagerumsgolv höger | 1 | 41127111214 | $63.92 | Shop at ECS Tuning | |||||
| 04 | Stöd längsbalk vänster | 1 | 41117163673 | $190.10 | Shop at ECS Tuning | |||||
| 05 | Stöd längsbalk höger | 1 | 09/2006 | 41117129500 | $190.10 | Avslutad | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | Jordningsbultar | M8X12 | 1 | 09/2006 | 07147182215 | Shop at ECS Tuning | ||||
| 06 | Stöd stötfangare | 2 | 41117111236 | $48.68 | Shop at ECS Tuning | |||||
| 07 | Längsbalk vänster bak | 1 | 41117201859 | $166.57 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Längsbalk bak höger | 1 | 41117201860 | $166.57 | Shop at ECS Tuning | |||||
| 09 | Rumsgolv vaenster | 1 | 41147111221 | $77.66 | Shop at ECS Tuning | |||||
| 10 | Rumsgolv höger | 1 | 41147111222 | $166.34 | Shop at ECS Tuning | |||||
| 11 | Audio konsoll | 1 | 41147176125 | $3.37 | Shop at ECS Tuning | |||||
| 12 | Skaft, multimedia-växla | 3 | 41147176126 | $2.27 | Shop at ECS Tuning | |||||
| 13 | Batterifäste fram | 1 | 41127111229 | $40.53 | Avslutad | Shop at ECS Tuning | ||||
| 14 | Batterifäste bak | 1 | 41127176122 | $40.53 | Shop at ECS Tuning | |||||
| 15 | Hållare bakre ljuddämpare | 1 | 41127111217 | $7.87 | Shop at ECS Tuning | |||||
| 16 | Rumsgolv fram | 1 | 41127111223 | $157.92 | Avslutad | Shop at ECS Tuning | ||||
| 17 | Stöd bagagerumsgolv vänster | 1 | 41117176121 | $28.56 | Shop at ECS Tuning | |||||
| 18 | Stöd bagagerumsgolv höger | 1 | 41117176123 | $28.56 | Avslutad | Shop at ECS Tuning | ||||
| 19 | Hållare för undertrycksledning | 1 | 41147111231 | $2.27 | Shop at ECS Tuning | |||||
| 20 | Haallare reservring | 1 | 51718108473 | $12.65 | Shop at ECS Tuning | |||||
| 21 | Gängad stång | M8X192 | 1 | 41118209460 | $3.62 | Shop at ECS Tuning | ||||
| 22 | Jordningsbultar | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 22 | Jordningsbultar | M6X12 | X | 41118367249 | $1.85 | Avslutad | Shop at ECS Tuning | |||
| 22 | Jordningsbultar | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
