Tak for BMW 3 Series E90 LCI 318i (2011)

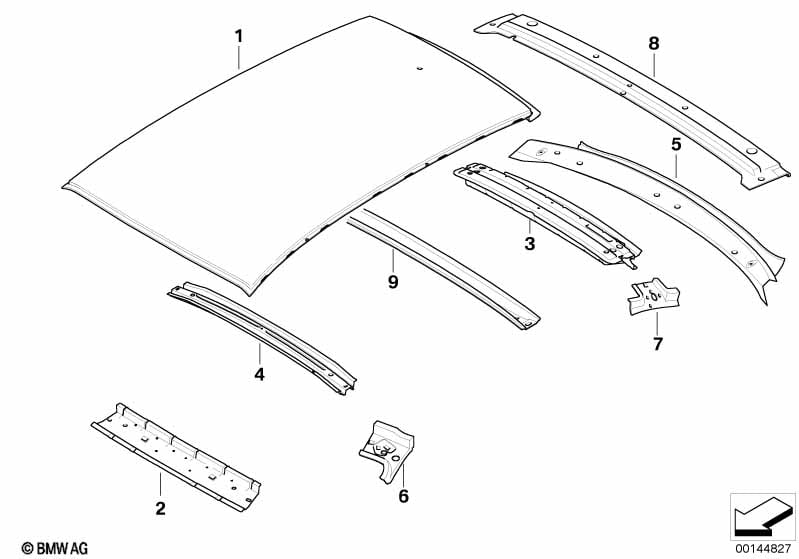

This Tak technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Utförs med reparationstekniken limning/nitning. Passar till vehiceles med och utan Takantenn |
||||||||||
| 01 | Yttretak | 1 | 41315A55AC9 | Shop at ECS Tuning | ||||||
| Krävs för reparationen | ||||||||||
| -- | Skruv | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| Om erforderlig, med Tomt hus takantenn |
||||||||||
| -- | Karosserilim K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| Om erforderlig, med Tomt hus takantenn |
||||||||||
| -- | Rengöringsmedel R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| Om erforderlig, med Tomt hus takantenn |
||||||||||
| -- | Stansnit N4 | 14 | 83192457307 | Shop at ECS Tuning | ||||||
| Om erforderlig, med Tomt hus takantenn |
||||||||||
| -- | Karosserilim K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| Om erforderlig, med Tomt hus takantenn |
||||||||||
| För fordon med glastak elektr. Utförs med reparationstekniken limning/nitning. Passar till vehiceles med och utan Takantenn |
S403A=Ja |
|||||||||
| 01 | Yttretak skyutbart lyfttak | 1 | 41317179844 | $1102.16 | Shop at ECS Tuning | |||||
| Krävs för reparationen | ||||||||||
| -- | Skruv | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| Om erforderlig, med Tomt hus takantenn |
||||||||||
| -- | Karosserilim K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| Om erforderlig, med Tomt hus takantenn |
||||||||||
| -- | Rengöringsmedel R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| Om erforderlig, med Tomt hus takantenn |
||||||||||
| -- | Stansnit N4 | 14 | 83192457307 | Shop at ECS Tuning | ||||||
| Om erforderlig, med Tomt hus takantenn |
||||||||||
| -- | Karosserilim K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| Om erforderlig, med Tomt hus takantenn |
||||||||||
| 02 | Torped ovan | 1 | 41327144965 | $65.22 | Shop at ECS Tuning | |||||
| 03 | Ram-bakruta oevre | 1 | 41327144963 | $32.62 | Shop at ECS Tuning | |||||
| 04 | Takbage | 1 | 41237144964 | $32.33 | Shop at ECS Tuning | |||||
| 05 | Ram-bakruta undre | 1 | 41327145345 | $22.20 | Shop at ECS Tuning | |||||
| 06 | Foerstaerkning torped ovan vaenster | 1 | 41217144947 | $7.70 | Shop at ECS Tuning | |||||
| 06 | Foerstaerkning torped ovan hoeger | 1 | 41217144948 | $7.70 | Shop at ECS Tuning | |||||
| 07 | Förstärkning ram-bakruta upptil vänster | 1 | 41217144961 | $4.86 | Shop at ECS Tuning | |||||
| 07 | Förstärkning ram-bakruta upptil höger | 1 | 41217144962 | $4.86 | Shop at ECS Tuning | |||||
