Motorhuvsmekanism for BMW 3 Series E90 LCI 318i (2011)

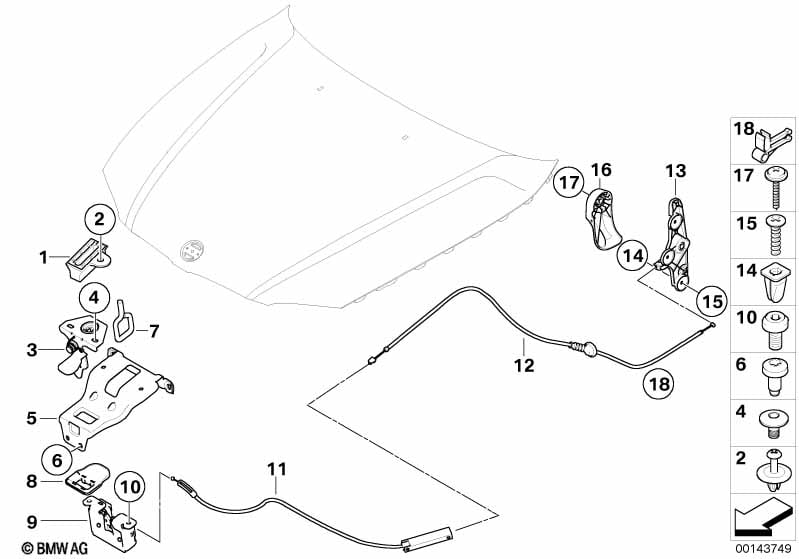

This Motorhuvsmekanism technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vridningsskydd | 2 | 51237002012 | $4.23 | Shop at ECS Tuning | |||||
| 02 | Expandernit | 2 | 51168197908 | $0.37 | Shop at ECS Tuning | |||||
| 03 | Krok motorhuv | 1 | 51237073916 | $23.12 | +stomme | Shop at ECS Tuning | ||||
| 04 | Linsskruv | M6X14 | 2 | 07146958688 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Låsbygel | 1 | 51237008756 | $5.93 | Shop at ECS Tuning | |||||
| 09 | Lås f motorhuv | 2 | 51237008755 | $72.30 | +stomme | Shop at ECS Tuning | ||||
| 10 | Torx-skruv med plaata | M6X12 | 4 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Bowdenkabel motorhuvsmekanism | 1 | 06/2006 | 51237184432 | $15.68 | Shop at ECS Tuning | ||||
| 12 | Bowdenkabel bak | 1 | 06/2006 | 51237201904 | $13.30 | Shop at ECS Tuning | ||||
| 13 | Kombinationsskaft | 1 | 51239150273 | $8.24 | Shop at ECS Tuning | |||||
| 14 | Expandermutter | 7X7 MM | 3 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Skruv | TS5X16-ZNS3 | 3 | 07/2007 | 07129905220 | $0.38 | Shop at ECS Tuning | |||
| 16 | Vred motorhuvsmekanism | 1 | 51237058117 | $2.61 | Shop at ECS Tuning | |||||
| 18 | Kabelhållare | 2 | 61136938788 | $0.72 | Shop at ECS Tuning |
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 318i Motorhuvsmekanism?
- This technical diagram illustrates the Motorhuvsmekanism within the Kaross - pletdetaljer group for the 3 Series E90 LCI 318i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Vridningsskydd (Part #51237002012).
- Which models use the hardware listed in this Motorhuvsmekanism?
- The hardware and components featured in the Motorhuvsmekanism are specific to the 3 Series E90 LCI 318i produced during 2011. These technical specifications ensure that parts like the Vridningsskydd (51237002012) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Motorhuvsmekanism assembly?
- Each item in the Motorhuvsmekanism corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 318i, you can identify the Vridningsskydd by locating its position on the schematic, which then links to the official BMW part number 51237002012 for the Kaross - pletdetaljer section.
