Motorhuv/mont.detaljer for BMW 3 Series E90 LCI 318i (2011)

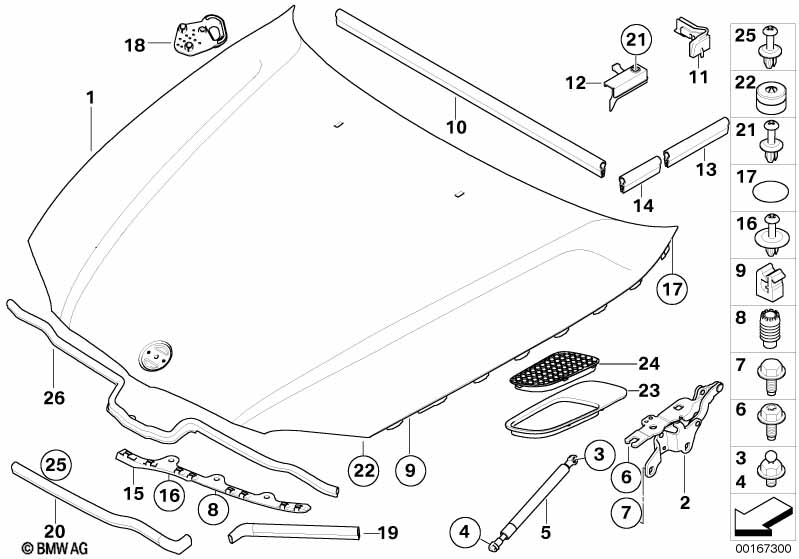

This Motorhuv/mont.detaljer technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Motorhuv | 1 | 09/2008 | 41617153940 | $558.07 | Shop at ECS Tuning | ||||
| 02 | Gaangjaern motorhuv vaenster | 1 | 41617210677 | $50.98 | Shop at ECS Tuning | |||||
| 02 | Gaangjaern motorhuv hoeger | 1 | 41617210678 | $50.98 | Shop at ECS Tuning | |||||
| 03 | Kulbult | M8X13 | 2 | 07147129401 | $1.40 | Shop at ECS Tuning | ||||
| 04 | Kulbult | M8X13 | 2 | 07147129401 | $1.40 | Shop at ECS Tuning | ||||
| 05 | Gasfjäder motorhuv | 330N | 2 | 51237060550 | $29.15 | Shop at ECS Tuning | ||||
| 06 | Sexkantskruv med bricka | M8X23 | 4 | 07147131648 | $1.05 | Shop at ECS Tuning | ||||
| 07 | Sexkantskruv med bricka | M8X25 | 4 | 07147031946 | $0.82 | Shop at ECS Tuning | ||||
| 08 | Anslagsbuffert | 2 | 51248254063 | $1.35 | Shop at ECS Tuning | |||||
| 09 | Buffert | 2 | 51238247699 | $1.02 | Shop at ECS Tuning | |||||
| 10 | Packning motorhuv bak | 1 | 51717060565 | $11.00 | Shop at ECS Tuning | |||||
| 11 | Överdel tätning motorhuv till vänster | 1 | 51767142049 | $6.59 | Shop at ECS Tuning | |||||
| 11 | Överdel tätning motorhuv till höger | 1 | 51767142050 | $6.59 | Shop at ECS Tuning | |||||
| 12 | Underdel f motorhuvens tätning till vän. | 1 | 51767124759 | $4.40 | Shop at ECS Tuning | |||||
| 12 | Underdel f motorhuvens tätning till hög. | 1 | 51767124760 | $4.40 | Shop at ECS Tuning | |||||
| 13 | Packning motorrum sidledes bak | 2 | 51767158690 | $2.21 | Shop at ECS Tuning | |||||
| 14 | Packning motorrum sidledes fram | 2 | 51767158689 | $2.21 | Shop at ECS Tuning | |||||
| 17 | Skyddsfolie | 2 | 07147162569 | $0.38 | Shop at ECS Tuning | |||||
| 18 | Anslag vänster | 1 | 51237159195 | $3.62 | Shop at ECS Tuning | |||||
| 18 | Anslag hoeger | 1 | 51237159196 | $3.62 | Shop at ECS Tuning | |||||
| 19 | Tätning motorhuv fram till höger | 1 | 51237159608 | $5.57 | Shop at ECS Tuning | |||||
| 19 | Tätning motorhuv fram till vänster | 1 | 51767159607 | $5.57 | Shop at ECS Tuning | |||||
| 20 | Tätning motorhuv fram | 1 | 51767143757 | $6.71 | Shop at ECS Tuning | |||||
| 21 | Expandernit | 2 | 51168197908 | $0.37 | Shop at ECS Tuning | |||||
| 22 | Anslagsbuffert | 4 | 51237162448 | $3.52 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 318i Motorhuv/mont.detaljer?
- This technical diagram illustrates the Motorhuv/mont.detaljer within the Kaross - pletdetaljer group for the 3 Series E90 LCI 318i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Motorhuv (Part #41617153940).
- Which models use the hardware listed in this Motorhuv/mont.detaljer?
- The hardware and components featured in the Motorhuv/mont.detaljer are specific to the 3 Series E90 LCI 318i produced during 2011. These technical specifications ensure that parts like the Motorhuv (41617153940) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Motorhuv/mont.detaljer assembly?
- Each item in the Motorhuv/mont.detaljer corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 318i, you can identify the Motorhuv by locating its position on the schematic, which then links to the official BMW part number 41617153940 for the Kaross - pletdetaljer section.
