Motorhuv låssystem for BMW 2 Series F45 Active Tourer LCI 218dX

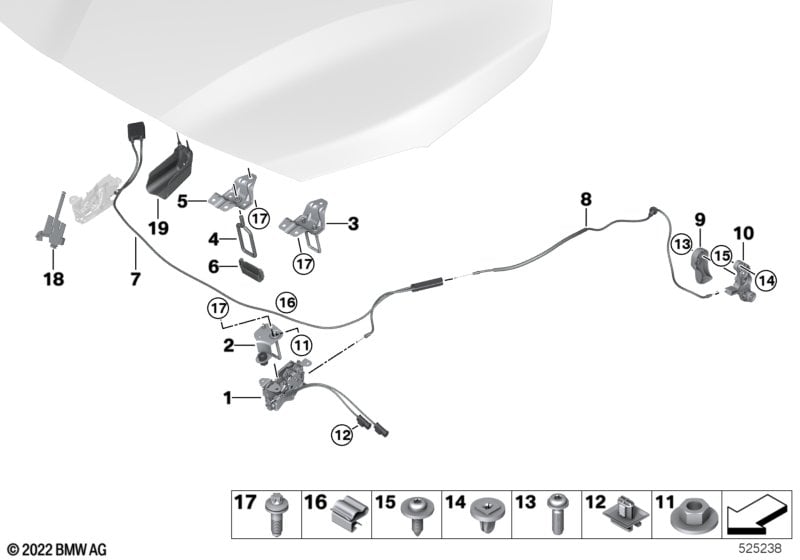

This Motorhuv låssystem technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 218dX. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med Aktivt fotgängarskydd |
S8TFA=Ja |
|||||||||
| 01 | Lås motorhuv FGS vänster | 1 | 51237242550 | Shop at ECS Tuning | ||||||
| 01 | Lås motorhuv FGS höger | 1 | 51237242551 | Shop at ECS Tuning | ||||||
| För fordon med Aktivt fotgängarskydd |
S8TFA=Nej |
|||||||||
| 01 | Lås f motorhuv höger | 1 | 51237376975 | Shop at ECS Tuning | ||||||
| 01 | Motorhuvslås med mikro-omkopplare vänst. | 1 | 51237376976 | Shop at ECS Tuning | ||||||
| 02 | Konsol låsbygel | 2 | 51237387165 | Shop at ECS Tuning | ||||||
| För fordon med Aktivt fotgängarskydd |
S8TFA=Ja |
|||||||||
| 07 | Bowdenkabel motorhuv fram | 1 | 51237300571 | Shop at ECS Tuning | ||||||
| endasti i kombination med | ||||||||||
| -- | Kabelbuntband | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| För fordon med Aktivt fotgängarskydd |
S8TFA=Nej |
|||||||||
| 07 | Bowdenkabel motorhuv fram | 1 | 51237495843 | Shop at ECS Tuning | ||||||
| 08 | Bowdenkabel motorhuv bak | 1 | 51237300572 | Shop at ECS Tuning | ||||||
| 09 | Vred motorhuvsmekanism | LL | 1 | 51237309606 | Shop at ECS Tuning | |||||
| 10 | Kombinationsskaft | LL | 1 | 51237326517 | Shop at ECS Tuning | |||||
| 11 | Sexkantmutter med plaata | M6 | 4 | 07147311066 | Shop at ECS Tuning | |||||
| 12 | Haallare stickkontakt | 1 | 61139285769 | Shop at ECS Tuning | ||||||
| För fordon med Aktivt fotgängarskydd |
S8TFA=Ja |
|||||||||
| 12 | Haallare stickkontakt | 3 | 61138038489 | $1.98 | Shop at ECS Tuning | |||||
| För fordon med Aktivt fotgängarskydd |
S8TFA=Nej |
|||||||||
| 12 | Haallare stickkontakt | 1 | 61138038489 | $1.98 | Shop at ECS Tuning | |||||
| 13 | Tvaerstyckskruv f plastmaterial | TS5X25-ZNNID-SW | 1 | 07146959925 | $0.29 | Shop at ECS Tuning | ||||
| 14 | Expandermutter | 7X7 MM | 3 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Skruv | 5X16 | 3 | 07129907471 | Shop at ECS Tuning | |||||
| 16 | Stötklämma | A=4,0 - 4,5MM | 3 | 07147566122 | $0.58 | Shop at ECS Tuning | ||||
| 18 | Skydd lås fram | 1 | 51237477555 | Shop at ECS Tuning | ||||||
| 19 | Skydd lås bak | 1 | 51237477554 | Shop at ECS Tuning | ||||||
