Foensterlist fram for BMW 7 Series E23 733i (1979)

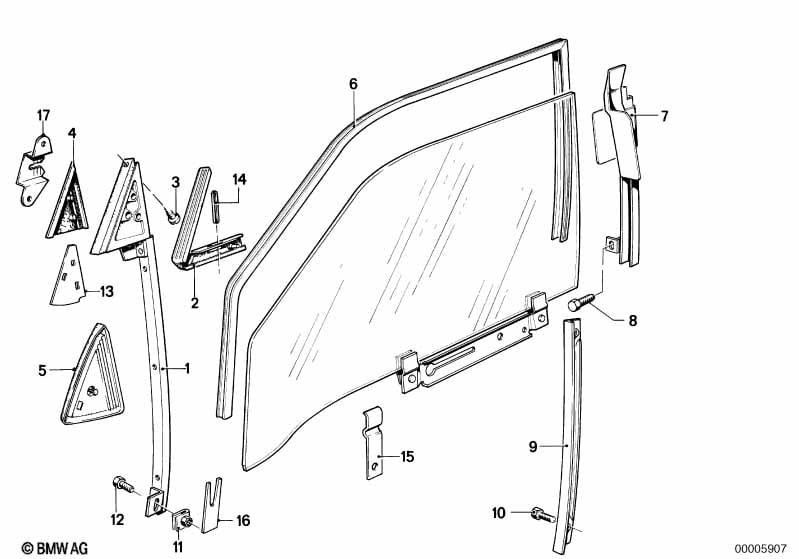

This Foensterlist fram technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Styrskena fram vaenst. | 1 | 01/1983 | 51321849207 | $21.76 | Shop at ECS Tuning | ||||
| 01 | Styrskena fram hoeger | 1 | 01/1983 | 51321849208 | $21.76 | Avslutad | Shop at ECS Tuning | |||
| 02 | Packning vaenster | 1 | 01/1983 | 51321852289 | $11.27 | Avslutad | Shop at ECS Tuning | |||
| 02 | Packning hoeger | 1 | 01/1983 | 51321852290 | Shop at ECS Tuning | |||||
| 03 | Plaatskruv | 3,5X9,5 | 2 | 07119904455 | $2.45 | Shop at ECS Tuning | ||||
| 04 | Packning vaenster | 1 | 01/1983 | 51321860079 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Packning hoeger | 1 | 01/1983 | 51321860080 | Avslutad | Shop at ECS Tuning | ||||
| 05 | Hörnblindering vänster | 1 | 51321917315 | $11.61 | Shop at ECS Tuning | |||||
| 05 | Hörnblindering höger | 1 | 51321917316 | $6.55 | Shop at ECS Tuning | |||||
| 06 | Foensterlist vaenster | 1 | 51321921459 | $51.70 | Shop at ECS Tuning | |||||
| 06 | Foensterlist hoeger | 1 | 51321921460 | $51.70 | Shop at ECS Tuning | |||||
| 07 | Styrskena bak vaenst. | 1 | 51321848681 | $8.32 | Shop at ECS Tuning | |||||
| 07 | Styrskena bak hoeger | 1 | 51321848682 | $8.32 | Shop at ECS Tuning | |||||
| 07 | Styrskena | 1 | 51323905647 | Shop at ECS Tuning | ||||||
| 07 | Styrskena | 1 | 51323905648 | Shop at ECS Tuning | ||||||
| 08 | Sexkantskruv med bricka | M6X16-U2-ZNS3 | 2 | 01/1983 | 07119902913 | Shop at ECS Tuning | ||||
| 09 | Loepskena | 2 | 51321846496 | $7.72 | Avslutad | Shop at ECS Tuning | ||||
| 10 | Sexkantskruv med bricka | M6X12-U2-8.8 | 4 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 11 | Mutterhaallare | 2 | 01/1983 | 51161813920 | $1.45 | Avslutad | Shop at ECS Tuning | |||
| 12 | Sexkantskruv med bricka | M6X16-U2-ZNS3 | 4 | 01/1983 | 07119902913 | Shop at ECS Tuning | ||||
| 13 | Plaat vänster | 1 | 01/1983 | 51321852219 | $3.35 | Avslutad | Shop at ECS Tuning | |||
| 13 | Plaat hoeger | 1 | 01/1983 | 51321852220 | $2.96 | Shop at ECS Tuning | ||||
| 14 | Spännstift | 2,5X10 | 1 | 07119941304 | $0.04 | Avslutad | Shop at ECS Tuning | |||
| 15 | Hållare | 8 | 51321882677 | $2.45 | Shop at ECS Tuning | |||||
| 16 | Underlagsplaata | 0,5MM | X | 01/1983 | 51341823676 | Avslutad | Shop at ECS Tuning | |||
| 16 | Underlagsplaata | 1,0MM | X | 01/1983 | 51341823677 | $0.20 | Shop at ECS Tuning | |||
| 16 | Underlagsplaata | 2,0MM | X | 01/1983 | 51341823678 | $0.28 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
