Stötlist for BMW 7 Series E32 730iL (1992)

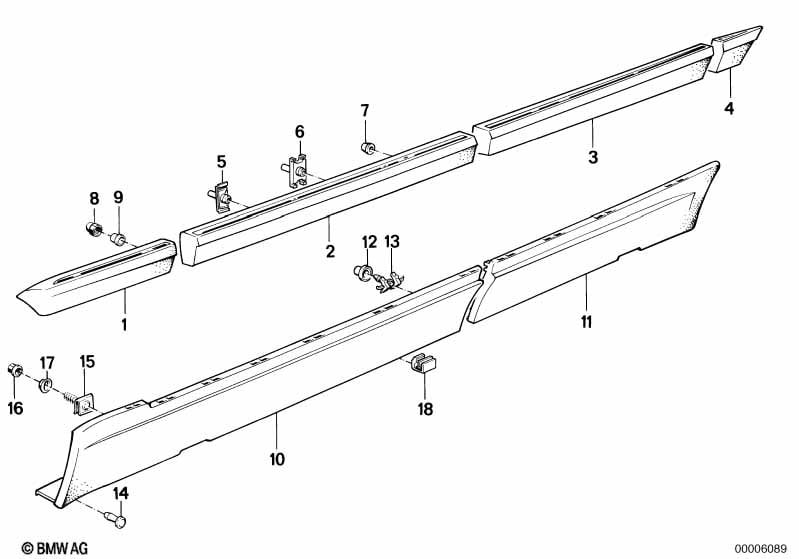

This Stötlist technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stoetlist skaerm fram vaenster | 1 | 51131908681 | $56.28 | Shop at ECS Tuning | |||||
| 01 | Stoetlist skaerm fram hoeger | 1 | 51131908682 | $56.28 | Shop at ECS Tuning | |||||
| 02 | Stoetlist doerr fram vaenster | 1 | 51131908683 | $86.58 | Shop at ECS Tuning | |||||
| 02 | Stoetlist doerr fram hoeger | 1 | 51131908684 | $86.58 | Shop at ECS Tuning | |||||
| 03 | Stoetlist doerr bak vaenster | 1 | 51131908717 | $82.25 | Shop at ECS Tuning | |||||
| 03 | Stoetlist doerr bak hoeger | 1 | 51131908718 | $82.25 | Shop at ECS Tuning | |||||
| 04 | Stoetlist skaerm bak vaenster | 1 | 51131908687 | $21.66 | Shop at ECS Tuning | |||||
| 04 | Stoetlist skaerm bak hoeger | 1 | 51131908688 | $21.66 | Shop at ECS Tuning | |||||
| 05 | Klammer | 4 | 51131908689 | $1.00 | Shop at ECS Tuning | |||||
| 06 | Klammer | X | 51131908690 | $0.85 | Shop at ECS Tuning | |||||
| 07 | Bussning | D=6,8 | 8 | 51131916449 | $0.50 | Shop at ECS Tuning | ||||
| 08 | Kupolmutter | M4 | 8 | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Bussning | 2 | 51131934160 | $0.32 | Shop at ECS Tuning | |||||
| 10 | Avtäckning vänster | 1 | 51711948023 | $107.26 | Shop at ECS Tuning | |||||
| 10 | Avtaeckning hoeger | 1 | 51711948024 | $107.26 | Shop at ECS Tuning | |||||
| 11 | Avtäckning vänster | 1 | 51711948275 | $97.72 | Shop at ECS Tuning | |||||
| 11 | Avtaeckning hoeger | 1 | 51711948276 | $97.72 | Shop at ECS Tuning | |||||
| 12 | Hylsa grön | D=9,1MM | X | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 13 | Klammer | X | 51711949809 | $0.50 | Shop at ECS Tuning | |||||
| 14 | Nit | 8 | 51711936929 | $0.37 | Shop at ECS Tuning | |||||
| 15 | Staellskruv | 4 | 51711933719 | $1.94 | Shop at ECS Tuning | |||||
| 16 | Plastmutter grovgängtapp | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 17 | Underlägg | 4 | 51361922724 | $0.70 | Shop at ECS Tuning | |||||
| 18 | Klaemmdelar | X | 51711938940 | $1.56 | Shop at ECS Tuning |
