Plaat klaedsel belaegen for BMW 7 Series E23 733i (1979)

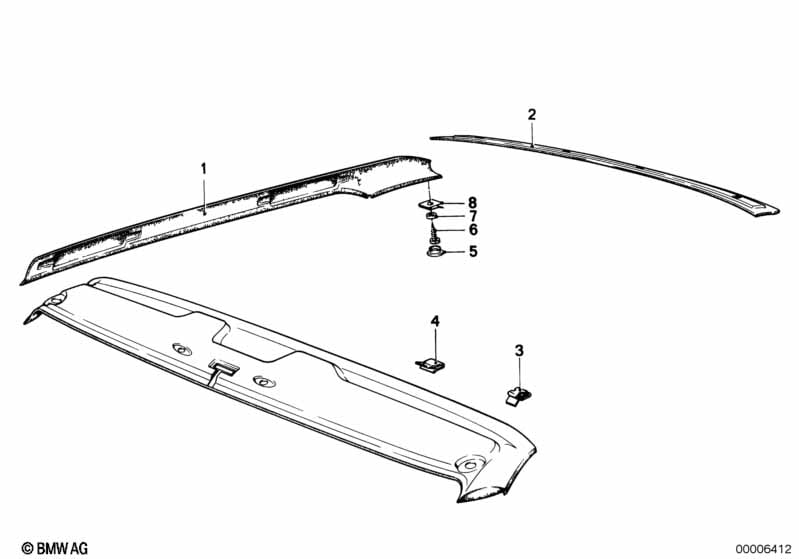

This Plaat klaedsel belaegen technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med Skjutbart lyfttak |
=Ja |
|||||||||
| 01 | Plaat tak hoeger | NUTRIA | 1 | 51441924628 | Avslutad | Shop at ECS Tuning | ||||
| 01 | Plaat tak vaenster | NUTRIA | 1 | 51441924629 | Avslutad | Shop at ECS Tuning | ||||
| 01 | Plaat tak hoeger | PINIENGRUEN | 1 | 51441931284 | Avslutad | Shop at ECS Tuning | ||||
| 01 | Plaat tak vaenster | PINIENGRUEN | 1 | 51441931285 | Avslutad | Shop at ECS Tuning | ||||
| 01 | Plaat tak vaenster | FARNGRUEN | 1 | 06/1978 | 10/1980 | 51441853595 | Avslutad | Shop at ECS Tuning | ||
| 01 | Plaat tak hoeger | FARNGRUEN | 1 | 06/1978 | 10/1980 | 51441853596 | Avslutad | Shop at ECS Tuning | ||
| 01 | Plaat tak vaenster | DUNKELBEIGE | 1 | 06/1978 | 10/1980 | 51441853597 | Avslutad | Shop at ECS Tuning | ||
| 01 | Plaat tak hoeger | DUNKELBEIGE | 1 | 06/1978 | 10/1980 | 51441853598 | Avslutad | Shop at ECS Tuning | ||
| 01 | Plaat tak vaenster | NYLONBRAUN | 1 | 06/1978 | 10/1980 | 51441866037 | Avslutad | Shop at ECS Tuning | ||
| 01 | Plaat tak hoeger | NYLONBRAUN | 1 | 06/1978 | 10/1980 | 51441866038 | Avslutad | Shop at ECS Tuning | ||
| 01 | Plaat tak vaenster | ANTHRAZIT | 1 | 06/1978 | 51441853593 | $84.54 | Avslutad | Shop at ECS Tuning | ||
| 01 | Plaat tak hoeger | ANTHRAZIT | 1 | 06/1978 | 51441880042 | Avslutad | Shop at ECS Tuning | |||
| 02 | Plaat tak bak | NUTRIA | 1 | 51441924631 | $83.70 | Avslutad | Shop at ECS Tuning | |||
| 02 | Plaat tak bak | PINIENGRUEN | 1 | 51441931288 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Plaat tak bak | FARNGRUEN | 1 | 06/1978 | 10/1980 | 51441856696 | Avslutad | Shop at ECS Tuning | ||
| 02 | Plaat tak bak | DUNKELBEIGE | 1 | 06/1978 | 10/1980 | 51441856697 | Avslutad | Shop at ECS Tuning | ||
| 02 | Plaat tak bak | NYLONBRAUN | 1 | 06/1978 | 10/1980 | 51441866039 | Avslutad | Shop at ECS Tuning | ||
| 02 | Plaat tak bak | ANTHRAZIT | 1 | 06/1978 | 51441856695 | $83.70 | Avslutad | Shop at ECS Tuning | ||
| 03 | Klammer | 4 | 51431852731 | $0.52 | Avslutad | Shop at ECS Tuning | ||||
| 05 | Kåpa | ANTHRAZIT | 2 | 51441868529 | $0.65 | Avslutad | Shop at ECS Tuning | |||
| 05 | Kåpa | NUTRIA | 2 | 51441921960 | $0.94 | Avslutad | Shop at ECS Tuning | |||
| 05 | Kåpa | PINIENGRUEN | 2 | 51441931194 | Avslutad | Shop at ECS Tuning | ||||
| 06 | Skruv KFH | ST3,5X13 | 2 | 07119906720 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Skruv KFH | ST4,8X19 | 2 | 07119907790 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Underlagsplaata | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Plaatmutter | ST3,5-1-ZNS | 2 | 07129901634 | $0.18 | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
