Doerrfoenstermekanism bak for BMW 2 Series F23 LCI 218d

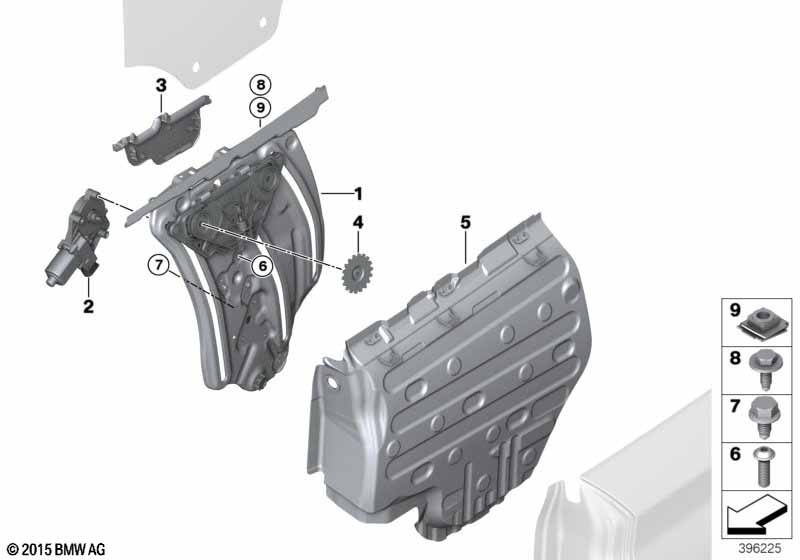

This Doerrfoenstermekanism bak technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 LCI 218d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Foensterhiss bak vaenst. | 1 | 51357435757 | Shop at ECS Tuning | ||||||
| 01 | Foensterhiss bak hoeger | 1 | 51357435758 | Shop at ECS Tuning | ||||||
| Vänster sida | ||||||||||
| 02 | Drivanordning fönsterhiss | RIGHT | 1 | 67627046032 | $147.05 | Shop at ECS Tuning | ||||
| Höger sida | ||||||||||
| 02 | Drivanordning fönsterhiss | LEFT | 1 | 67627046031 | $147.05 | Shop at ECS Tuning | ||||
| 03 | Akustikskydd vänster | 1 | 51357344073 | Shop at ECS Tuning | ||||||
| 03 | Akustikskydd höger | 1 | 51357344074 | Shop at ECS Tuning | ||||||
| 04 | Hakskruv | 2 | 51337184604 | $3.79 | Shop at ECS Tuning | |||||
| 05 | Vattenavledning vänster | 1 | 51357398229 | Shop at ECS Tuning | ||||||
| 05 | Vattenavledning höger | 1 | 51357398230 | Shop at ECS Tuning | ||||||
| 06 | Linsskruv | 6 | 07146982677 | $0.47 | Shop at ECS Tuning | |||||
| 07 | Sexkantskruv | M8X12 | 2 | 07119907416 | Shop at ECS Tuning | |||||
| 08 | Sexkantskruv | M6X16 ZNS3 | 4 | 07119905577 | Shop at ECS Tuning | |||||
| 09 | C-clip mutter | M6 | 4 | 07142452506 | Shop at ECS Tuning | |||||
