Koffertrumklädsel for BMW 3 Series E36 323ti (1997)

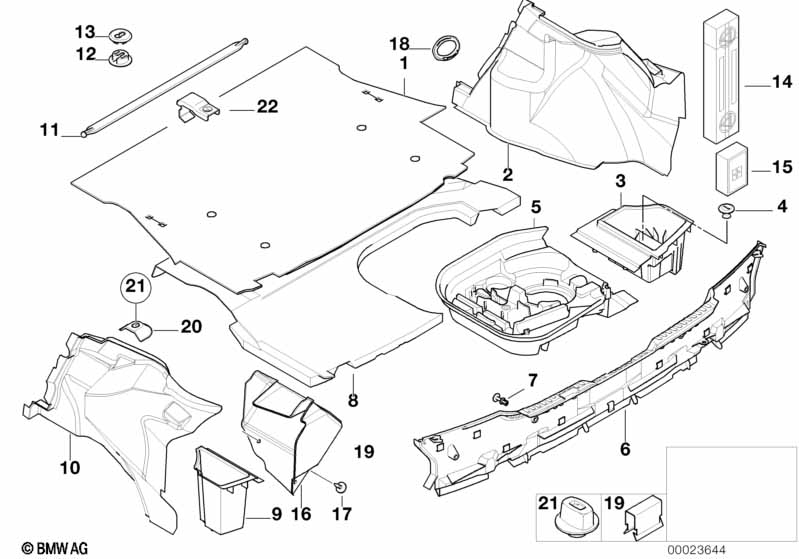

This Koffertrumklädsel technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bagagerumsmatta | ANTHRAZIT | 1 | 51478146939 | $71.32 | Avslutad | Shop at ECS Tuning | |||
| 01 | Bagagerumsmatta | SANDGRAU | 1 | 51478146940 | $71.32 | Shop at ECS Tuning | ||||
| 02 | Klaedsel hoeger | SANDGRAU | 1 | 51478233564 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 02 | Klaedsel hoeger | ANTHRAZIT | 1 | 51478233566 | +stomme | Shop at ECS Tuning | ||||
| För fordon med Ljudsystem |
=Ja |
|||||||||
| 02 | Klaedsel hoeger | SANDGRAU | 1 | 51478233558 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 02 | Klaedsel hoeger | ANTHRAZIT | 1 | 51478233560 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 03 | Klaedsel hoeger | SANDGRAU | 1 | 51478233546 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Klaedsel hoeger | ANTHRAZIT | 1 | 51478233548 | Shop at ECS Tuning | |||||
| 04 | Tryckknopp | ANTHRAZIT | X | 51478146949 | $0.69 | Shop at ECS Tuning | ||||
| 04 | Tryckknopp | SANDGRAU | X | 51478146950 | $0.79 | Shop at ECS Tuning | ||||
| 05 | Förvaringsfack vagnlyftare | 1 | 71111095100 | +stomme | Shop at ECS Tuning | |||||
| 06 | Akterbeklaednad | 1 | 51478239548 | $56.68 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Expandernit | SCHWARZ | X | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 08 | Isolermatta | 1 | 51478232773 | Avslutad, +stomme | Shop at ECS Tuning | |||||
| 09 | Bagagerumsinsats | ANTHRAZIT | 1 | 51478146945 | $12.65 | Shop at ECS Tuning | ||||
| 09 | Bagagerumsinsats | SANDGRAU | 1 | 51478146947 | $12.65 | Shop at ECS Tuning | ||||
| 10 | Klaedsel vaenster | ANTHRAZIT | 1 | 51478146933 | $28.27 | Shop at ECS Tuning | ||||
| 10 | Klaedsel vaenster | SANDGRAU | 1 | 51478146935 | $28.27 | Shop at ECS Tuning | ||||
| 11 | Spännband svart | L=590 MM | 2 | 51478136450 | $6.73 | Shop at ECS Tuning | ||||
| 12 | Fäste spännband underdel | SCHIEFER | 4 | 51478136257 | $0.73 | Shop at ECS Tuning | ||||
| 13 | Fäste spännband överdel | ANTHRAZIT | 4 | 51478146943 | $0.77 | Shop at ECS Tuning | ||||
| 14 | Varntriangel med behållare | 1 | 71601092427 | $19.53 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 15 | Första hjälpen-set väska röd | 1 | 51478163269 | Shop at ECS Tuning | ||||||
| 15 | Första hjälpen-set väska svart | DIN 13164 | 1 | 71107263439 | Shop at ECS Tuning | |||||
| För fordon med CD Växlare |
=Ja |
|||||||||
| 16 | Avtäckning vänster | ANTHRAZIT | 1 | 51478201168 | $53.79 | Shop at ECS Tuning | ||||
| 16 | Avtäckning vänster | SANDGRAU | 1 | 51478201169 | $53.79 | Avslutad | Shop at ECS Tuning | |||
| 17 | Plugg | D=6.35MM | 3 | 51718137323 | $1.02 | Shop at ECS Tuning | ||||
| 18 | Hoegtalarpanel | SCHWARZ | 1 | 51442253889 | $14.13 | Shop at ECS Tuning | ||||
| 19 | Klammer | 2 | 51478215467 | $0.42 | Shop at ECS Tuning | |||||
| 20 | Kåpa | SANDGRAU | 1 | 51478233544 | Avslutad | Shop at ECS Tuning | ||||
| 20 | Kåpa | ANTHRAZIT | 1 | 51478233545 | Avslutad | Shop at ECS Tuning | ||||
| 21 | Vingmutter | 1 | 51478247760 | $9.81 | Avslutad | Shop at ECS Tuning | ||||
| 22 | Avtaeckning mittre | 1 | 09/1994 | 51718195669 | $18.03 | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
