Ljudisolering fram for BMW 3 Series E36 323ti (1997)

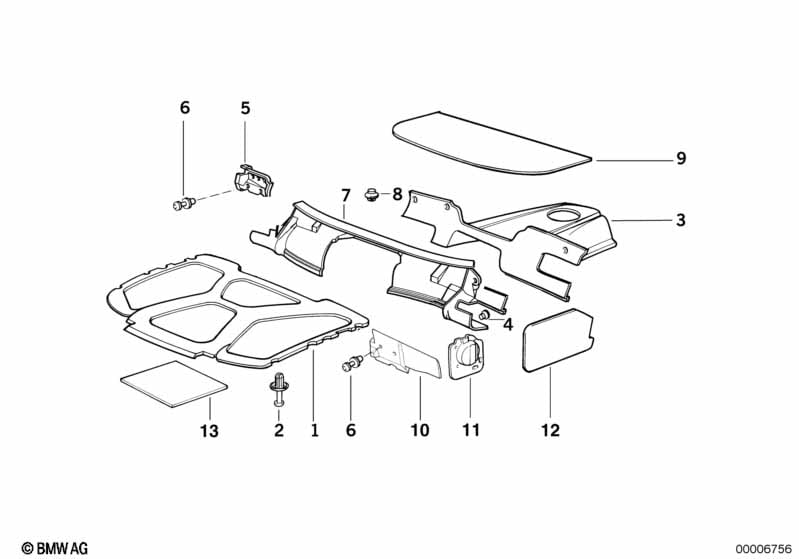

This Ljudisolering fram technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ljudisolering motorhuv | 1 | 51488122215 | Shop at ECS Tuning | ||||||
| 02 | Expandernit | D=7,5MM | X | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Ljudisolering framvaegg motorrum | 1 | 51481977019 | $152.88 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Ljudisolering framvaegg | 1 | 10/1995 | 51481960369 | $121.64 | Avslutad | Shop at ECS Tuning | |||
| 04 | Tryckknopp | D=30MM;H=13MM | 6 | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 05 | Ljudisolering framvaegg motorrum hoeger | 1 | 51481977110 | $152.88 | Shop at ECS Tuning | |||||
| 06 | Expandernit | 3 | 51488122437 | $0.77 | Shop at ECS Tuning | |||||
| 07 | Ljudisolering framvaegg | 1 | 51488144785 | $224.23 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Tryckknopp | 6 | 61131373669 | $0.93 | Shop at ECS Tuning | |||||
| 09 | Ljudisolierung tak | 1 | 51481977023 | $34.35 | Shop at ECS Tuning | |||||
| 11 | Ljudisolering vaenster | 1 | 51488202273 | $17.93 | Shop at ECS Tuning | |||||
| 11 | Ljudisolering hoeger | 1 | 51488202274 | $16.29 | Shop at ECS Tuning | |||||
| 13 | Ljudisolerande klädsel | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323ti Ljudisolering fram?
- This technical diagram illustrates the Ljudisolering fram within the Inredning group for the 3 Series E36 323ti produced during 1997. It provides a detailed exploded view of the components, identifying key parts such as the Ljudisolering motorhuv (Part #51488122215).
- Which models use the hardware listed in this Ljudisolering fram?
- The hardware and components featured in the Ljudisolering fram are specific to the 3 Series E36 323ti produced during 1997. These technical specifications ensure that parts like the Ljudisolering motorhuv (51488122215) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ljudisolering fram assembly?
- Each item in the Ljudisolering fram corresponds to the numbered list below the illustration. For the 3 Series E36 323ti, you can identify the Ljudisolering motorhuv by locating its position on the schematic, which then links to the official BMW part number 51488122215 for the Inredning section.
