Kantskydd / Panel tröskel for BMW 3 Series E36 328i (1995)

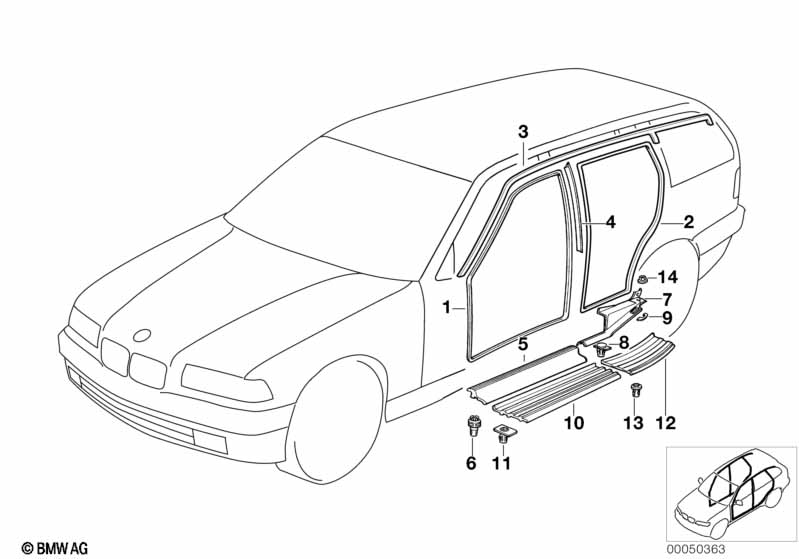

This Kantskydd / Panel tröskel technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kantskydds fram | 2 | 51728196289 | $73.16 | Shop at ECS Tuning | |||||
| 02 | Kantskydds bak | 2 | 51728196290 | $85.81 | Shop at ECS Tuning | |||||
| 03 | Packning takram vaenster | 1 | 51718233797 | Shop at ECS Tuning | ||||||
| 03 | Packning takram hoeger | 1 | 51718233798 | Avslutad | Shop at ECS Tuning | |||||
| 04 | Taetningslist f doerrar/stolpe mitten v. | 1 | 51221960667 | $29.82 | Shop at ECS Tuning | |||||
| 04 | Taetningslist f doerrar/stolpe mitten h. | 1 | 51221960668 | $29.82 | Shop at ECS Tuning | |||||
| 05 | Panel foer troeskellister fram | SCHWARZ | 2 | 51478130435 | $12.55 | Shop at ECS Tuning | ||||
| 05 | Panel foer troeskellister fram | GRAU | 2 | 51478189307 | $12.55 | Shop at ECS Tuning | ||||
| 05 | Panel foer troeskellister fram | BEIGE | 2 | 51478189308 | $12.55 | Shop at ECS Tuning | ||||
| 06 | Klaemma panel foer troeskellister | 4 | 51478234047 | $0.44 | Shop at ECS Tuning | |||||
| 07 | Panel foer troeskellister bak vaenster | SCHWARZ | 1 | 51478130053 | $16.02 | Shop at ECS Tuning | ||||
| 07 | Panel foer troeskellister bak hoeger | SCHWARZ | 1 | 51478130054 | $16.02 | Shop at ECS Tuning | ||||
| 07 | Panel foer troeskellister bak vaenster | BEIGE | 1 | 51478187161 | $16.02 | Shop at ECS Tuning | ||||
| 07 | Panel foer troeskellister bak hoeger | BEIGE | 1 | 51478187162 | $16.02 | Shop at ECS Tuning | ||||
| 07 | Panel foer troeskellister bak vaenster | GRAU | 1 | 51478187163 | $16.02 | Shop at ECS Tuning | ||||
| 07 | Panel foer troeskellister bak hoeger | GRAU | 1 | 51478187164 | $16.02 | Shop at ECS Tuning | ||||
| 08 | Klammer | 4 | 51471840961 | $0.42 | Shop at ECS Tuning | |||||
| 09 | Packning | 2 | 51478130023 | $3.50 | Shop at ECS Tuning | |||||
| 10 | Blaendare ingaang fram | SCHWARZ | 2 | 09/1996 | 51471977013 | $5.67 | Shop at ECS Tuning | |||
| 11 | Clip Natur | L=13,2MM | 6 | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
| 12 | Blaendare ingaang bak vaenster | SCHWARZ | 1 | 09/1996 | 51478119263 | $7.05 | Shop at ECS Tuning | |||
| 12 | Blaendare ingaang bak hoeger | SCHWARZ | 1 | 09/1996 | 51478119264 | $7.05 | Shop at ECS Tuning | |||
| 13 | Expandernit svart | L=15MM | 4 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 14 | Plastmutter grovgängtapp | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Kantskydd / Panel tröskel?
- This technical diagram illustrates the Kantskydd / Panel tröskel within the Inredning group for the 3 Series E36 328i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Kantskydds fram (Part #51728196289).
- Which models use the hardware listed in this Kantskydd / Panel tröskel?
- The hardware and components featured in the Kantskydd / Panel tröskel are specific to the 3 Series E36 328i produced during 1995. These technical specifications ensure that parts like the Kantskydds fram (51728196289) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kantskydd / Panel tröskel assembly?
- Each item in the Kantskydd / Panel tröskel corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Kantskydds fram by locating its position on the schematic, which then links to the official BMW part number 51728196289 for the Inredning section.
