Lock/förslutningsplugg for BMW 5 Series E39 525i (2003)

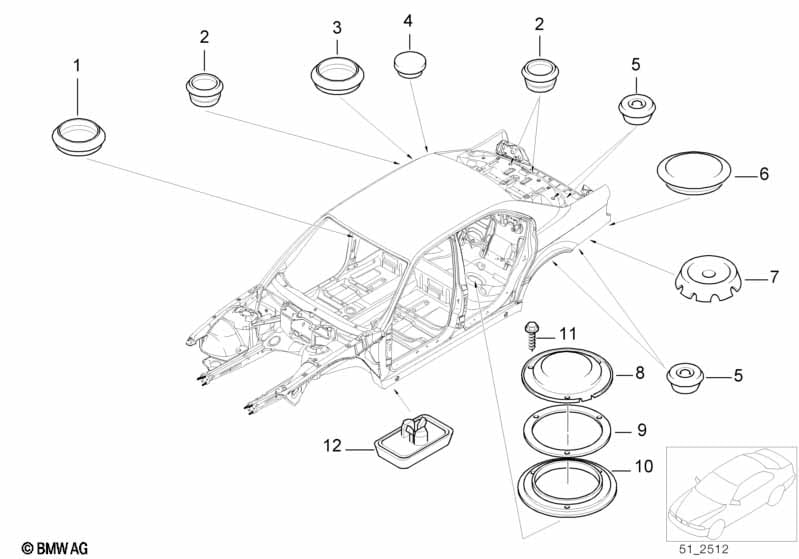

This Lock/förslutningsplugg technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | D = hålcirkeldiameter i karosseriet |
|||||||||
| 01 | Plugg | D=25MM | 4 | 51718126605 | $0.39 | Shop at ECS Tuning | ||||
| 02 | Plugg | D=12MM | 4 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Plugg | D=25MM | 2 | 51718126605 | $0.39 | Shop at ECS Tuning | ||||
| 04 | Plugg | D=14MM | 2 | 33111236826 | $0.23 | Shop at ECS Tuning | ||||
| 05 | Plugg | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 05 | Plugg | D=17MM | 1 | 51221924979 | $1.10 | Shop at ECS Tuning | ||||
| 06 | Plugg | D=22MM | 1 | 51711855009 | $0.50 | Shop at ECS Tuning | ||||
| 07 | Plugg | D=20MM | 2 | 51718174490 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Sidolock | 2 | 51718191200 | $2.58 | Shop at ECS Tuning | |||||
| 09 | Packning | 2 | 51718191201 | $0.97 | Shop at ECS Tuning | |||||
| 10 | Förstärkningsring vänster | 2 | 41128184524 | $3.88 | Shop at ECS Tuning | |||||
| 11 | Skruv KFH | ST4,8X13 | 6 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Upptagande lyft | 4 | 51717001650 | $14.75 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
