Kantskydd / Panel tröskel for BMW 5 Series E39 525i (2003)

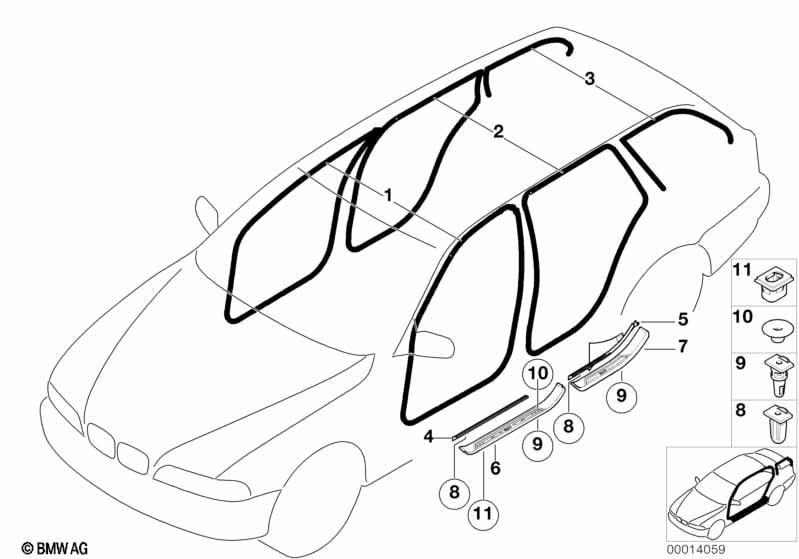

This Kantskydd / Panel tröskel technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kantskydds fram | ANTHRAZIT | 2 | 51727116403 | $62.38 | Shop at ECS Tuning | ||||
| 02 | Kantskydds bak | ANTHRAZIT | 2 | 51727116407 | $112.73 | Shop at ECS Tuning | ||||
| 03 | Kantskydds vaenster | ANTHRAZIT | 1 | 51728190631 | $48.32 | Avslutad | Shop at ECS Tuning | |||
| 03 | Kantskydds hoeger | ANTHRAZIT | 1 | 51728190632 | $48.32 | Shop at ECS Tuning | ||||
| 04 | Panel foer troeskellister fram | SCHWARZ | 2 | 51478204004 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Panel foer troeskellister fram | GRAU | 2 | 51478204005 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Panel foer troeskellister fram | MARINEBLAU | 2 | 51478204006 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Panel foer troeskellister fram | SANDBEIGE | 2 | 51478204007 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Panel foer troeskellister fram | DUNKELGRUEN | 2 | 51478204008 | $16.05 | Shop at ECS Tuning | ||||
| 05 | Panel foer troeskellister bak vaenster | SCHWARZ | 1 | 51478204009 | $16.05 | Shop at ECS Tuning | ||||
| 05 | Panel foer troeskellister bak hoeger | SCHWARZ | 1 | 51478204010 | $16.05 | Shop at ECS Tuning | ||||
| 05 | Panel foer troeskellister bak vaenster | GRAU | 1 | 51478204011 | $11.10 | Shop at ECS Tuning | ||||
| 05 | Panel foer troeskellister bak hoeger | GRAU | 1 | 51478204012 | $16.05 | Shop at ECS Tuning | ||||
| 05 | Panel foer troeskellister bak vaenster | MARINEBLAU | 1 | 51478204013 | $16.05 | Shop at ECS Tuning | ||||
| 05 | Panel foer troeskellister bak hoeger | MARINEBLAU | 1 | 51478204014 | $16.05 | Shop at ECS Tuning | ||||
| 05 | Panel foer troeskellister bak vaenster | SANDBEIGE | 1 | 51478204015 | $16.05 | Shop at ECS Tuning | ||||
| 05 | Panel foer troeskellister bak hoeger | SANDBEIGE | 1 | 51478204016 | $16.05 | Shop at ECS Tuning | ||||
| 05 | Panel foer troeskellister bak vaenster | DUNKELGRUEN | 1 | 51478204017 | $16.05 | Shop at ECS Tuning | ||||
| 05 | Panel foer troeskellister bak hoeger | DUNKELGRUEN | 1 | 51478204018 | $16.05 | Shop at ECS Tuning | ||||
| 06 | Blaendare ingaang fram vaenster | SCHWARZ | 1 | 51478159933 | $52.92 | Shop at ECS Tuning | ||||
| 06 | Blaendare ingaang fram hoeger | SCHWARZ | 1 | 51478159934 | $52.92 | Shop at ECS Tuning | ||||
| 07 | Blaendare ingaang bak vaenster | BMW | 1 | 51478168039 | $52.92 | Shop at ECS Tuning | ||||
| 07 | Blaendare ingaang bak hoeger | BMW | 1 | 51478168040 | $52.92 | Shop at ECS Tuning | ||||
| 08 | Clip Natur | L=13,2MM | X | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
| 09 | Klaemma panel foer troeskellister | X | 51478234047 | $0.44 | Shop at ECS Tuning | |||||
| 10 | Insatsen | 2 | 51418195400 | $0.50 | Shop at ECS Tuning | |||||
| 11 | Insatsen | 2 | 51478238611 | $0.75 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
