Doerrfoenstermekanism bak for BMW 3 Series E46 318i (2001)

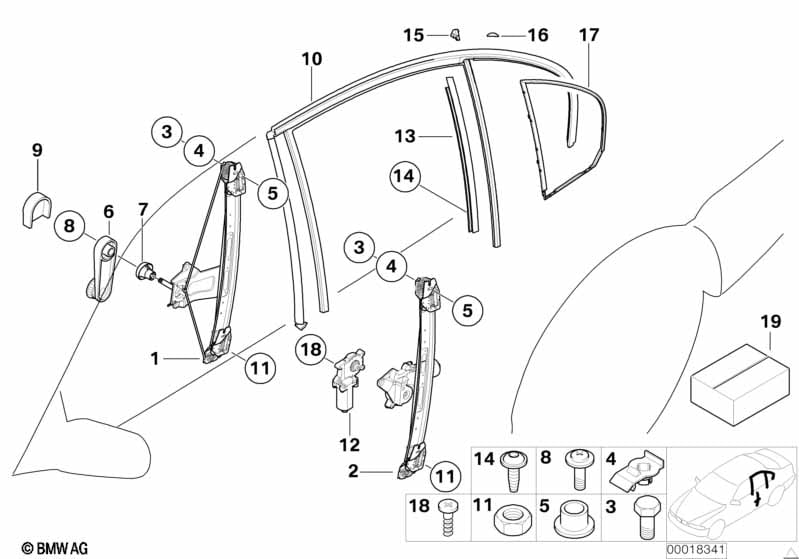

This Doerrfoenstermekanism bak technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Foensterhiss bak vaenst. | 1 | 51347011205 | Shop at ECS Tuning | ||||||
| 01 | Foensterhiss bak hoeger | 1 | 51347011206 | Shop at ECS Tuning | ||||||
| 02 | Elektr.foensterhiss bak vaenst. | 1 | 51358212099 | $121.20 | Shop at ECS Tuning | |||||
| Krävs för reparationen | ||||||||||
| -- | Ljudisolering doerr bak vaenster | 1 | 51488196127 | $36.51 | Shop at ECS Tuning | |||||
| 02 | Elektr.foensterhiss bak hoeger | 1 | 51358212100 | $121.20 | Shop at ECS Tuning | |||||
| Krävs för reparationen | ||||||||||
| -- | Ljudisolering doerr bak hoeger | 1 | 51488196128 | $36.51 | Shop at ECS Tuning | |||||
| 03 | Sexkantskruv | M6X12 | 2 | 07147154229 | $0.19 | Shop at ECS Tuning | ||||
| 04 | Clip | 2 | 51338218383 | $0.55 | Shop at ECS Tuning | |||||
| 05 | Bussning | 2 | 51338242760 | $0.68 | Shop at ECS Tuning | |||||
| 06 | Foenstervev | SCHWARZ | 2 | 51328122503 | $14.60 | Shop at ECS Tuning | ||||
| 07 | Skjutkon vänster | 1 | 51348212177 | Shop at ECS Tuning | ||||||
| 07 | Skjutkon höger | 1 | 51348212178 | Shop at ECS Tuning | ||||||
| 09 | Skydd | SCHWARZ | 2 | 51328186711 | $1.80 | Shop at ECS Tuning | ||||
| 10 | Fönsterstyrning dörr bak vänster | 1 | 51348266125 | $77.25 | Shop at ECS Tuning | |||||
| 10 | Fönsterstyrning dörr bak höger | 1 | 51348266126 | $77.25 | Shop at ECS Tuning | |||||
| 11 | Sexkantmutter | M6 | 8 | 07146951627 | $0.53 | Shop at ECS Tuning | ||||
| För fordon med Elektr. fönsterhiss |
=Ja |
|||||||||
| 11 | Sexkantmutter | M6 | 6 | 07146951627 | $0.53 | Shop at ECS Tuning | ||||
| passar endast till fönsterhiss höger | ||||||||||
| 12 | Drivanordning fönsterhiss bak | 2-POLIG | 1 | 67628362065 | $147.05 | Shop at ECS Tuning | ||||
| passar endast till fönsterhiss vänster | ||||||||||
| 12 | Drivanordning fönsterhiss bak | BOSCH | 1 | 67628362066 | $147.05 | Shop at ECS Tuning | ||||
| 13 | Bländare fönsterstyrningsliv vänster | GLANZSCHWARZ | 1 | 51342695287 | $89.93 | Shop at ECS Tuning | ||||
| 13 | Bländare fönsterstyrningsliv höger | GLANZSCHWARZ | 1 | 51342695288 | $89.93 | Shop at ECS Tuning | ||||
| 13 | Bländare fönsterstyrningsliv vänster | 1 | 51348160973 | $28.71 | Shop at ECS Tuning | |||||
| 13 | Bländare fönsterstyrningsliv höger | 1 | 51348160974 | $28.71 | Shop at ECS Tuning | |||||
| 14 | Linsskruv | 3 | 07149140365 | $0.25 | Shop at ECS Tuning | |||||
| 15 | Packning bak vänster | 1 | 51348245861 | $1.03 | Shop at ECS Tuning | |||||
| 15 | Packning bak höger | 1 | 51348245862 | $1.03 | Shop at ECS Tuning | |||||
| 16 | Packning | 2 | 51348244882 | $1.23 | Shop at ECS Tuning | |||||
| 17 | Tätning sidoruta vänster bak | 1 | 51348194693 | $12.95 | Shop at ECS Tuning | |||||
| 17 | Tätning sidoruta höger bak | 1 | 51348194694 | $12.95 | Shop at ECS Tuning | |||||
| 18 | Skruv med saenkhuvud | 3 | 51338254577 | $0.52 | Shop at ECS Tuning | |||||
| 19 | Set monteringsdetaljer fönsterhiss bak | VALUE PARTS | 2 | 51102311936 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
