Glas monteringsdetaljer for BMW 5 Series E60 530xi (2007)

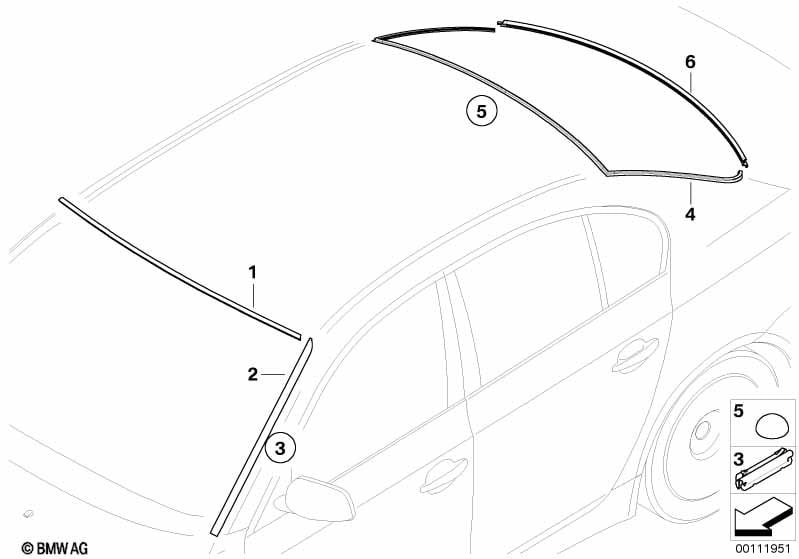

This Glas monteringsdetaljer technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Skydd vindruta | 1 | 51317166841 | $26.74 | Shop at ECS Tuning | |||||
| 02 | Vattenavledningslist vänster | 1 | 51317045447 | $62.38 | Shop at ECS Tuning | |||||
| 02 | Dropplist höger | 1 | 51317045448 | $62.38 | Shop at ECS Tuning | |||||
| 03 | Clip | X | 51317064098 | $0.82 | Shop at ECS Tuning | |||||
| 04 | Avtäckning bakruta | 1 | 51317027916 | $42.34 | Shop at ECS Tuning | |||||
| För fordon med Säkerhetsfordon eller Laminerat glas klimatkomfort eller Skydds-glas |
S106A=Ja S356A=Ja S357A=Ja |
|||||||||
| 04 | Avtäckning bakruta | 1 | 51317057415 | $42.34 | Shop at ECS Tuning | |||||
| 05 | Gummibuffert | D = 11.1 | 7 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| 06 | Skydd bakruta nedtill | 1 | 51317115412 | $29.64 | Shop at ECS Tuning | |||||
| För fordon med Säkerhetsfordon eller Laminerat glas klimatkomfort eller Skydds-glas |
S106A=Ja S356A=Ja S357A=Ja |
|||||||||
| 06 | Skydd bakruta nedtill | 1 | 51317115413 | $29.64 | Shop at ECS Tuning | |||||
