Lock/förslutningsplugg for BMW 5 Series E60 525i (2007)

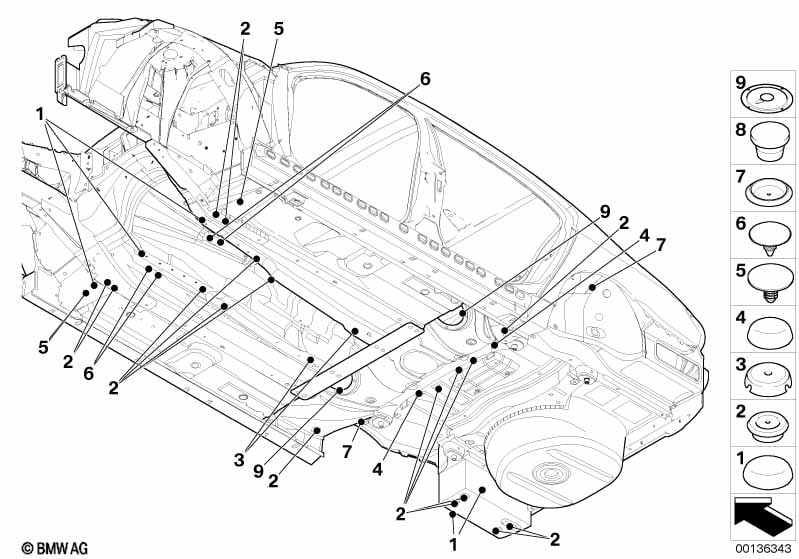

This Lock/förslutningsplugg technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | D = hålcirkeldiameter i karosseriet |
|||||||||
| 01 | Plugg | D=15MM | X | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| 02 | Plugg | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 03 | Plugg | D=20MM | X | 51718174490 | $0.56 | Shop at ECS Tuning | ||||
| 04 | Plugg | D=12MM | X | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 05 | Propp svart | D=5MM | X | 52208133466 | $0.50 | Shop at ECS Tuning | ||||
| 06 | Plugg | D=6.35MM | X | 51718137323 | $1.02 | Shop at ECS Tuning | ||||
| 07 | Plugg | D=25MM | X | 51718126605 | $0.39 | Shop at ECS Tuning | ||||
| 08 | Plugg | D=12MM | X | 33311137456 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Låsbart lock golvplåt bak | 2 | 41127128476 | $6.58 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i Lock/förslutningsplugg?
- This technical diagram illustrates the Lock/förslutningsplugg within the Inredning group for the 5 Series E60 525i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Plugg (Part #07147127540).
- Which models use the hardware listed in this Lock/förslutningsplugg?
- The hardware and components featured in the Lock/förslutningsplugg are specific to the 5 Series E60 525i produced during 2007. These technical specifications ensure that parts like the Plugg (07147127540) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lock/förslutningsplugg assembly?
- Each item in the Lock/förslutningsplugg corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the Plugg by locating its position on the schematic, which then links to the official BMW part number 07147127540 for the Inredning section.
