Diverse karosseridelar for BMW 7 Series E66 760Li (2008)

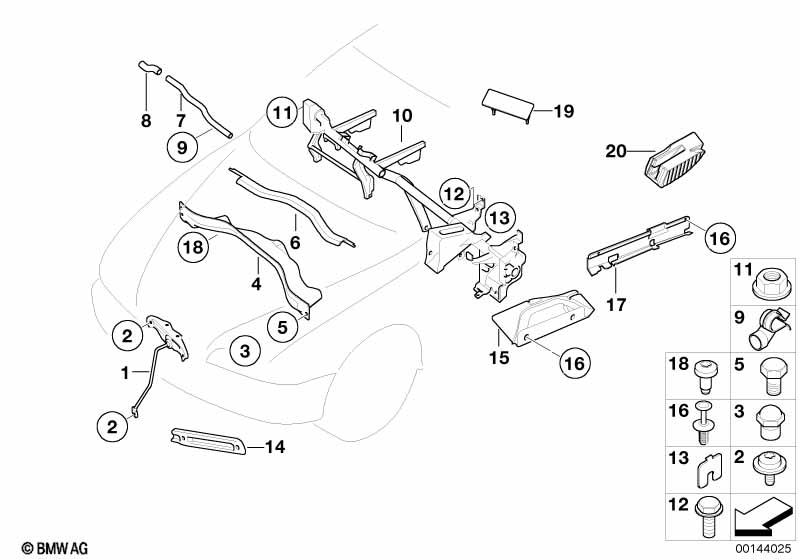

This Diverse karosseridelar technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hållare fångkrok motorhuv | 1 | 03/2005 | 51717141860 | $35.92 | +stomme | Shop at ECS Tuning | |||
| 02 | Torx skruv | ISA M6X18 SW | 5 | 03/2005 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 03 | Anslag motorhuv | 1 | 03/2005 | 51718209307 | $1.02 | Shop at ECS Tuning | ||||
| 04 | Bakreplaat motorrum hoeger | 1 | 03/2005 | 51717033687 | $84.12 | Shop at ECS Tuning | ||||
| 05 | Sexkantskruv med bricka | M6X16-U2-ZNS3 | 4 | 03/2005 | 07119902913 | Shop at ECS Tuning | ||||
| 06 | Tätning motorrummet | 1 | 03/2005 | 51717013744 | $14.96 | Shop at ECS Tuning | ||||
| 07 | Vattenavledarrör | 1 | 03/2005 | 51717018996 | $22.06 | Shop at ECS Tuning | ||||
| 08 | Vattenutloppbussning | 1 | 03/2005 | 51717018995 | $6.42 | Shop at ECS Tuning | ||||
| 09 | Hållare vattenavloppsslang | 1 | 03/2005 | 51717019001 | $4.44 | Shop at ECS Tuning | ||||
| 10 | Stödrör, instrumentpanel | 1 | 03/2005 | 51717031973 | $513.06 | Avslutad, +stomme | Shop at ECS Tuning | |||
| 11 | Sexkantmutter med plaata | M8-ZNS3 | 4 | 03/2005 | 07129904862 | $1.12 | Shop at ECS Tuning | |||
| 12 | Sexkantskruv med bricka | M8X20MM | 6 | 03/2005 | 51717056831 | $1.27 | Shop at ECS Tuning | |||
| 13 | Mellanlägg | 1 | 03/2005 | 51717017069 | $0.84 | Avslutad | Shop at ECS Tuning | |||
| 14 | Tvärstag motorfäste vänster | 1 | 03/2005 | 51717022833 | $6.42 | Avslutad | Shop at ECS Tuning | |||
| 15 | Kabel avtaeckng.laengsbalk fram vaenst. | 1 | 03/2005 | 51718223345 | $11.75 | Shop at ECS Tuning | ||||
| 15 | Kabel avtaeckng.laengsbalk fram hoeger | 1 | 03/2005 | 51718223346 | $11.75 | Avslutad | Shop at ECS Tuning | |||
| 16 | Expandernit | D = 8MM | 10 | 03/2005 | 51471911992 | $0.40 | Shop at ECS Tuning | |||
| 17 | Kabel avtaeckning bak vaenster | 1 | 03/2005 | 51717012099 | $5.81 | Avslutad | Shop at ECS Tuning | |||
| 17 | Kabel avtaeckning bak hoeger | 1 | 03/2005 | 51717012100 | $5.81 | Avslutad | Shop at ECS Tuning | |||
| 18 | Linsskruv | ISA M6X16 | 2 | 03/2005 | 07146956324 | $0.25 | Shop at ECS Tuning | |||
| 19 | Skaft-haenvisningsskylt | 1 | 03/2005 | 51717036662 | $3.33 | Shop at ECS Tuning | ||||
| 20 | Crashpad vänster | 1 | 03/2005 | 51718243567 | $11.71 | Shop at ECS Tuning | ||||
| 20 | Crashpad höger | 1 | 03/2005 | 51718243568 | $11.71 | Avslutad | Shop at ECS Tuning |
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E66 760Li Diverse karosseridelar?
- This technical diagram illustrates the Diverse karosseridelar within the Inredning group for the 7 Series E66 760Li produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Hållare fångkrok motorhuv (Part #51717141860).
- Which models use the hardware listed in this Diverse karosseridelar?
- The hardware and components featured in the Diverse karosseridelar are specific to the 7 Series E66 760Li produced during 2008. These technical specifications ensure that parts like the Hållare fångkrok motorhuv (51717141860) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Diverse karosseridelar assembly?
- Each item in the Diverse karosseridelar corresponds to the numbered list below the illustration. For the 7 Series E66 760Li, you can identify the Hållare fångkrok motorhuv by locating its position on the schematic, which then links to the official BMW part number 51717141860 for the Inredning section.
