Emblem / skrift for BMW 7 Series E66 760Li (2008)

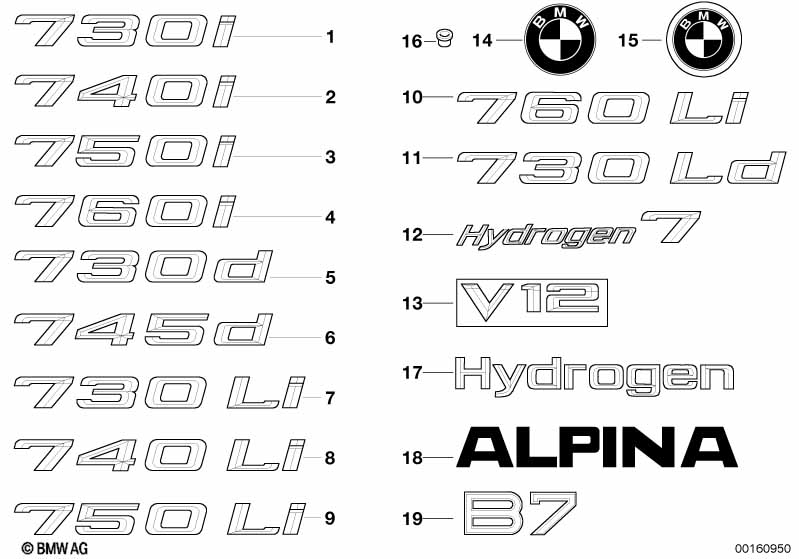

This Emblem / skrift technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | Textmärkning | - 760LI - | 1 | 03/2005 | 51147148196 | $39.60 | Shop at ECS Tuning | |||
| 13 | Emblem vänster | - V12 - | 1 | 03/2005 | 51147033255 | $49.62 | Shop at ECS Tuning | |||
| 13 | Emblem höger | - V12 - | 1 | 03/2005 | 51147033256 | $49.62 | Shop at ECS Tuning | |||
| passar endast till motorhuv | ||||||||||
| 14 | Plakett | Ø 82MM | 1 | 03/2005 | 51148132375 | $32.02 | Shop at ECS Tuning | |||
| Krävs för reparationen | ||||||||||
| -- | Bussning | 2 | 03/2005 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
| passar endast till koffertlucka | ||||||||||
| 15 | Plakett | 1 | 03/2005 | 51147135356 | $32.02 | Shop at ECS Tuning | ||||
| 16 | Bussning | 4 | 03/2005 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
