Avlaeggningsbotten for BMW 1 Series F20 118dX (2015)

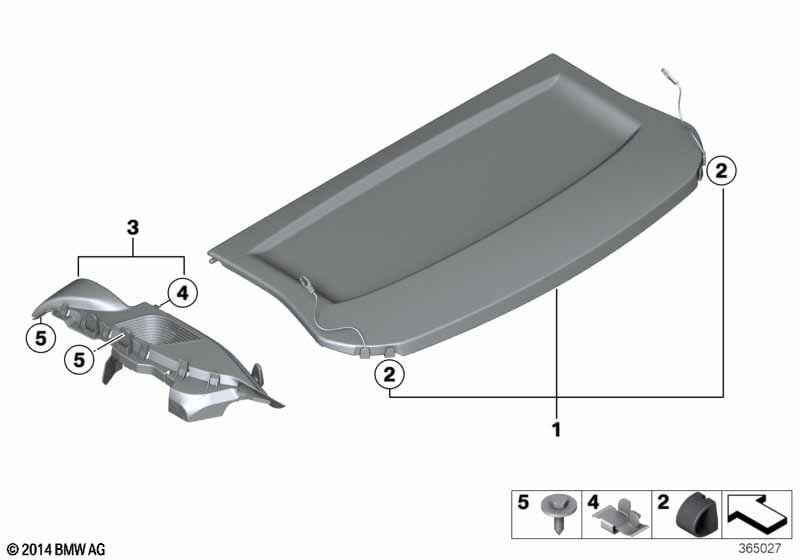

This Avlaeggningsbotten technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 118dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Avlaeggningsbotten | SCHWARZ | 1 | 51467271849 | +stomme | Shop at ECS Tuning | ||||
| För fordon med Takhimmel antracit och oyster/oyster |
S775A=Nej DH=Ja |
|||||||||
| 01 | Avlaeggningsbotten | OYSTER | 1 | 51467271845 | +stomme | Shop at ECS Tuning | ||||
| 02 | Gummibuffert | 2 | 51466967605 | Shop at ECS Tuning | ||||||
| För fordon med HiFi-system Harman Kardon |
S674A=Ja |
|||||||||
| 03 | Upptagande avläggningsbotten vänster | SCHWARZ | 1 | 51467271859 | Shop at ECS Tuning | |||||
| 03 | Upptagande avläggningsbotten höger | SCHWARZ | 1 | 51467271860 | Shop at ECS Tuning | |||||
| För fordon med HiFi-system Harman Kardon |
S674A=Nej |
|||||||||
| 03 | Upptagande avläggningsbotten vänster | SCHWARZ | 1 | 51467271851 | Shop at ECS Tuning | |||||
| 03 | Upptagande avläggningsbotten höger | SCHWARZ | 1 | 51467271852 | Shop at ECS Tuning | |||||
| För fordon med HiFi-system Harman Kardon och Takhimmel antracit och oyster/oyster |
S674A=Ja S775A=Nej DH=Ja |
|||||||||
| 03 | Upptagande avläggningsbotten vänster | OYSTER | 1 | 51467271441 | Shop at ECS Tuning | |||||
| 03 | Upptagande avläggningsbotten höger | OYSTER | 1 | 51467271442 | Shop at ECS Tuning | |||||
| För fordon med HiFi-system Harman Kardon och Takhimmel antracit och oyster/oyster |
S674A=Nej S775A=Nej DH=Ja |
|||||||||
| 03 | Upptagande avläggningsbotten vänster | OYSTER | 1 | 51467271857 | NoS | Shop at ECS Tuning | ||||
| 03 | Upptagande avläggningsbotten höger | OYSTER | 1 | 51467271858 | Shop at ECS Tuning | |||||
| För fordon med HiFi-system Harman Kardon |
S674A=Ja |
|||||||||
| 04 | Klammer vänster | 1 | 51438146709 | $1.32 | Shop at ECS Tuning | |||||
| 04 | Klammer höger | 1 | 51438146710 | $1.32 | Shop at ECS Tuning | |||||
| 05 | Sexkantplaatskruv med bricka | ST4,8X16MM | 8 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
- NoS = No Stock (Delen lagras inte centralt.)
