Ljudisolering bak for BMW 3 Series F31 328i (2012)

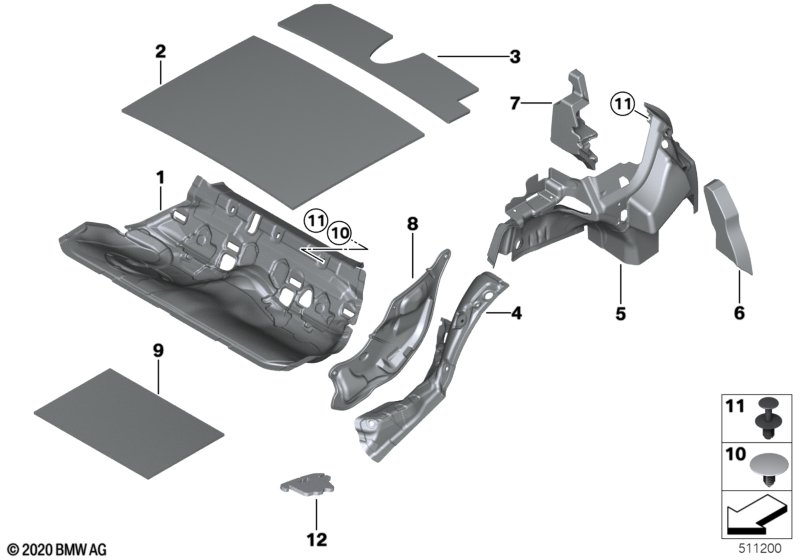

This Ljudisolering bak technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ljudisolering bottem bak | 1 | 51487244204 | Shop at ECS Tuning | ||||||
| 02 | Ljudisolering tak mittre | 1 | 51487264739 | Shop at ECS Tuning | ||||||
| 03 | Ljudisolering tak bak | 1 | 51487264740 | Shop at ECS Tuning | ||||||
| 04 | Ljudisolering hjulhus bak vaenster | 1 | 51487221971 | Shop at ECS Tuning | ||||||
| 04 | Ljudisolering hjulhus bak hoeger | 1 | 51487221972 | Shop at ECS Tuning | ||||||
| 05 | Ljudisolering tak vaenster bagagerum | 1 | 51477234601 | Shop at ECS Tuning | ||||||
| 05 | Ljudisolering tak hoeger bagagerum | 1 | 51477234602 | Shop at ECS Tuning | ||||||
| 06 | Ljudisolering bagageutrymme utv. vänster | 1 | 51487341511 | Shop at ECS Tuning | ||||||
| 07 | Ljudisolering bagageutrymme inv. vänster | 1 | 51487341513 | Shop at ECS Tuning | ||||||
| För fordon med Koppling för fortsatt motorgång och Extra-energiförsörjning och Myndighetsvehicel omaskerad och Utryckningsfordon kamouflage |
S108A=Nej S146A=Nej S185A=Nej S186A=Nej |
|||||||||
| 07 | Ljudisolering bagageutrymme inv. höger | 1 | 51487341514 | Shop at ECS Tuning | ||||||
| 08 | Ljudisolering doerr bak vaenster | 1 | 51487263413 | Shop at ECS Tuning | ||||||
| 08 | Ljudisolering doerr bak hoeger | 1 | 51487263414 | Shop at ECS Tuning | ||||||
| 09 | Ljudisolerande klädsel dörr | 2 | 41007164849 | $25.68 | Shop at ECS Tuning | |||||
| 09 | Ljudisolerande klädsel | 1160X700MM | 1 | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
| 10 | Clip | D=30MM | 3 | 51488245867 | $0.35 | Shop at ECS Tuning | ||||
| 11 | Expandernit | D = 8MM | 2 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 12 | Ljudisolering B-stolpe | ECE | 2 | 51487327391 | NoS | Shop at ECS Tuning | ||||
Notering
- NoS = No Stock (Delen lagras inte centralt.)
