Monteringsdetaljer mittkonsol for BMW 1 Series F40 118d (2024)

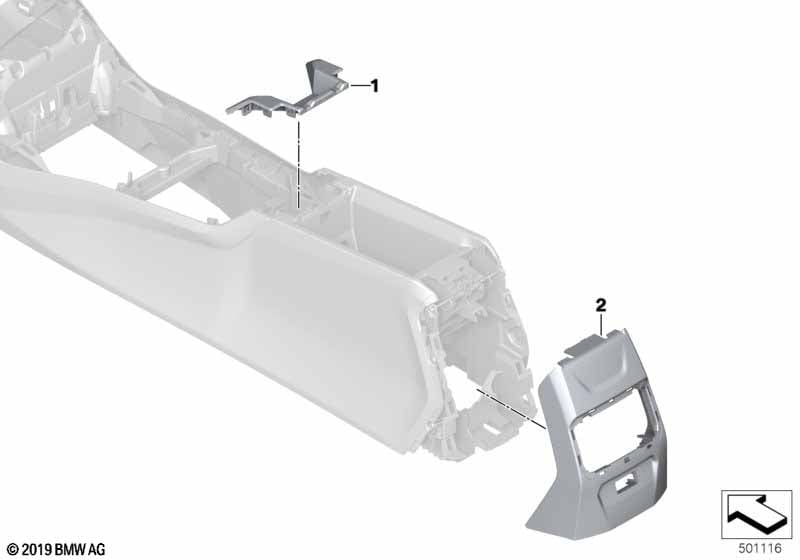

This Monteringsdetaljer mittkonsol technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mittkonsolpanel mitten | 1 | 51166823560 | NoS | Shop at ECS Tuning | |||||
| För fordon med Förvaringspaket |
S493A=Ja |
|||||||||
| 02 | Skärm mittkonsol bak | 1 | 51166823440 | NoS | Shop at ECS Tuning | |||||
| För fordon med Förvaringspaket |
S493A=Nej |
|||||||||
| 02 | Skärm mittkonsol bak | 1 | 51166823439 | NoS | Shop at ECS Tuning | |||||
Notering
- NoS = No Stock (Delen lagras inte centralt.)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F40 118d Monteringsdetaljer mittkonsol?
- This technical diagram illustrates the Monteringsdetaljer mittkonsol within the Inredning group for the 1 Series F40 118d produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Mittkonsolpanel mitten (Part #51166823560).
- Which models use the hardware listed in this Monteringsdetaljer mittkonsol?
- The hardware and components featured in the Monteringsdetaljer mittkonsol are specific to the 1 Series F40 118d produced during 2024. These technical specifications ensure that parts like the Mittkonsolpanel mitten (51166823560) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Monteringsdetaljer mittkonsol assembly?
- Each item in the Monteringsdetaljer mittkonsol corresponds to the numbered list below the illustration. For the 1 Series F40 118d, you can identify the Mittkonsolpanel mitten by locating its position on the schematic, which then links to the official BMW part number 51166823560 for the Inredning section.
