Sits fram liggstolbeslag for BMW 3 Series E21 320i (1979)

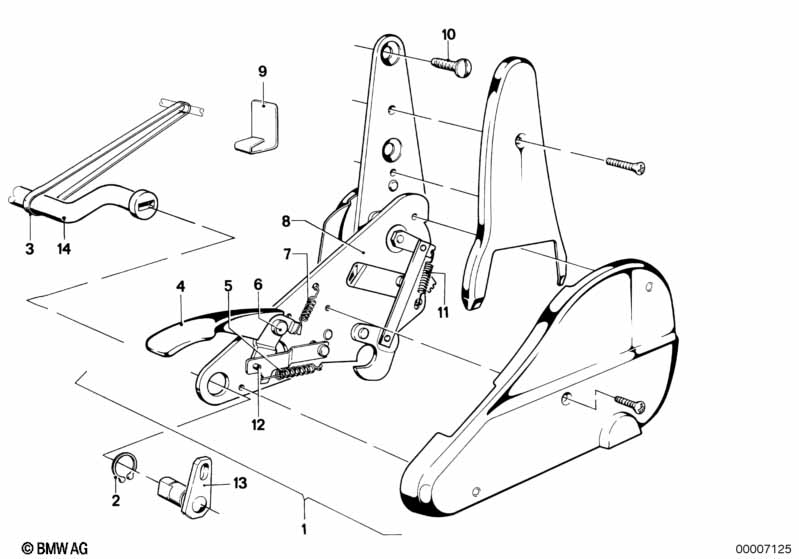

This Sits fram liggstolbeslag technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Utförande 300-301 | |||||||||
| 01 | Liggstolbeslag vaenster | 1 | 05/1976 | 52101852987 | Avslutad | Shop at ECS Tuning | ||||
| 01 | Liggstolbeslag hoeger | 1 | 05/1976 | 52101852988 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Laasring | 20X1,2 | 4 | 07119934132 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Gummiring | 2 | 52101843100 | $0.54 | Shop at ECS Tuning | |||||
| 04 | Arm vänster | 1 | 52101841743 | $63.18 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Vred hoeger | 1 | 52101841744 | $63.18 | Avslutad | Shop at ECS Tuning | ||||
| 05 | Dragfjaeder | 2 | 52101841730 | $1.01 | Avslutad | Shop at ECS Tuning | ||||
| 06 | Bultar | 2 | 52101841736 | $0.67 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Dragfjaeder | 2 | 52101841739 | $15.74 | Shop at ECS Tuning | |||||
| 08 | Liggstolbesalg innanfoer hoeger | 1 | 52101845796 | Avslutad | Shop at ECS Tuning | |||||
| 08 | Liggstolbeslag utanfoer hoeger | 1 | 52101845798 | $19.96 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Liggstolbeslag utanfoer vaenster | 1 | 52101855363 | $56.53 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Liggstolbeslag innanfoer vaenster | 1 | 52101855365 | $50.50 | Avslutad | Shop at ECS Tuning | ||||
| 09 | Fjäder | 2 | 52101837662 | Avslutad | Shop at ECS Tuning | |||||
| 10 | Lins saenka skruv | AM8X20 | 8 | 52101842674 | $0.71 | Shop at ECS Tuning | ||||
| 11 | Fjäder | 2 | 52109071078 | $8.32 | Avslutad | Shop at ECS Tuning | ||||
| 12 | Bultar | 2 | 52101841747 | Avslutad | Shop at ECS Tuning | |||||
| 13 | Oeverfoeringshaev | 4 | 05/1976 | 52101852980 | $5.06 | Shop at ECS Tuning | ||||
| 14 | Foerbindelseroer | 2 | 52101841682 | $9.08 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
